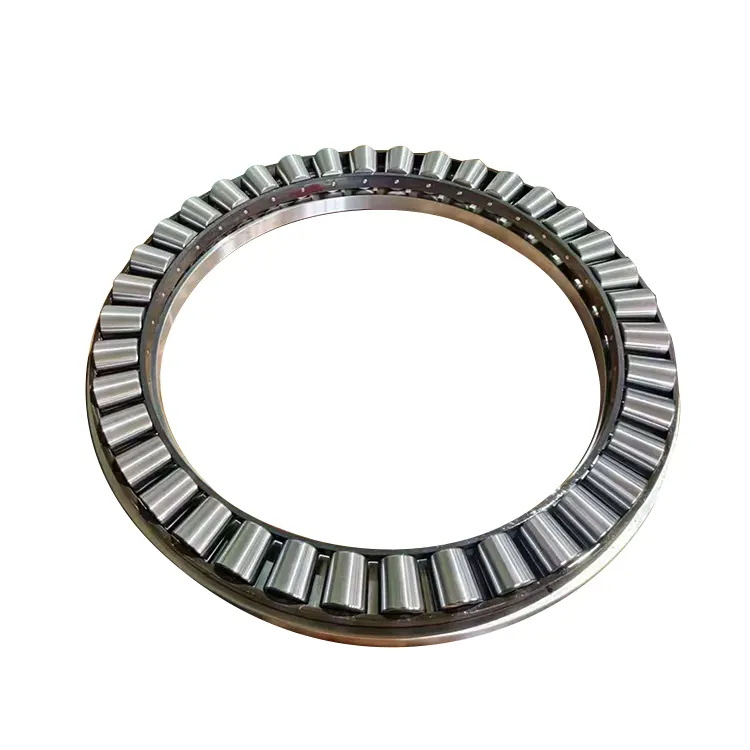

Thrust Taper Roller Cone Crusher Bearing

The Thrust Taper Roller Cone Crusher Bearing is mainly composed of a shaft washer, a housing washer, tapered rollers and a cage. The shaft washer and the housing washer are the two main rings of the bearing. The tapered rollers are arranged between them, and the cage is used to evenly separate the rollers to prevent the rollers from rubbing against each other and clustering together, ensuring the normal operation of the bearing. The shape of the tapered rollers enables the force to be evenly distributed on the rollers and the raceways when the bearing is subjected to axial loads.

Working Principle

During the operation of the cone crusher, a large axial force will be generated. The role of the thrust tapered roller bearing is to withstand these axial forces and transmit them to the supporting structure such as the equipment frame, ensuring that the main shaft and other components of the crusher operate smoothly, and will not produce excessive displacement or vibration due to the action of the axial force, thereby ensuring the normal operation of the crushing work.

Performance Characteristics

1.High Axial Load Capacity: The thrust tapered roller bearing can bear a large unidirectional axial load, which is an important reason for its wide application in cone crushers. It can effectively deal with the high-intensity axial force generated during the operation of the crusher, ensuring the reliability of the equipment.

2.Good Wear Resistance: Due to the use of high-quality bearing steel materials and appropriate heat treatment processes, the raceways and the surfaces of the rollers of the bearing have high hardness and wear resistance, and can maintain good performance under long-term heavy-load working conditions, extending the service life.

3.Adjust-ability: During the installation process, by adjusting the axial clearance of the bearing, the working performance of the bearing can be optimized, enabling it to better adapt to the working requirements under different working conditions. At the same time, this adjust-ability also helps to improve the installation accuracy and operation stability of the equipment.

4.Adaptability to Harsh Working Conditions: The working environment of a cone crusher is often harsh, with a large amount of dust, vibration and impact. The structural design and material selection of the thrust tapered roller bearing enable it to better adapt to such harsh conditions, having a certain ability to resist pollution and impact, and reducing the damage of the bearing caused by external factors.

Parameter (Specification)

KOMEL bearings are meticulously engineered to meet the exacting demands of cone crusher operations. Our dedicated engineering team collaborates closely with original equipment manufacturers (OEMS) to develop a comprehensive range of custom - designed bearings, tailored specifically for the most popular cone crusher models in the market.

To ensure long - lasting durability, many of our bearing designs feature fully machined brass cages. However, when dealing with extremely high - capacity requirements, we employ alternative cage designs that are optimized to maximize load - carrying capabilities. At KOMEL, we also maintain strict control over key geometric features, guaranteeing seamless and trouble - free operation of our bearings under the harshest cone crusher conditions.

Cone crusher bearings from KOMEL offer an excellent repair option, especially considering their size and cost - effectiveness. In most cases, these bearings can be restored to their original, like - new specifications in less time and at a lower cost compared to purchasing new ones, all without compromising on performance. Our re-manufacturing service is available for any bearing type or brand, providing a sustainable and economical solution for our customers.

If you have specific requirements for cone crusher bearings, please do not hesitate to reach out to KOMEL. Our team is committed to responding promptly and providing you with the best - suited bearing solutions for your needs.
