Single Row Angular Contact Ball Bearing

Komel Bearing Co.,Ltd. is a leading Single Row Angular Contact Ball Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

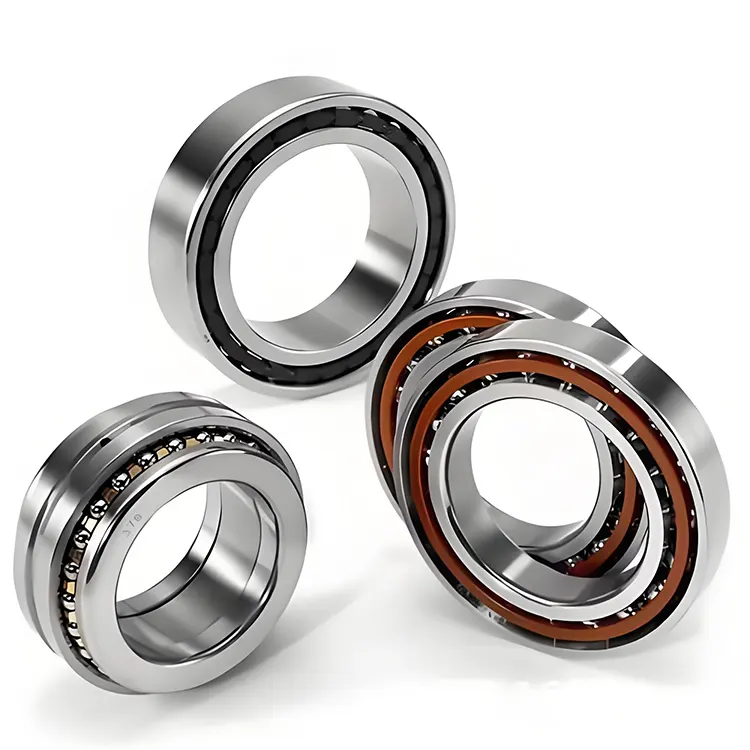

The Single Row Angular Contact Ball Bearing produced by KOMEL consists of an inner ring, an outer ring, a row of steel balls and a cage. There is a rib on one side of the outer ring or inner ring to limit the axial displacement of the steel balls.

Contact angle (α): determines the axial load capacity. Common angles are 15° (C type), 25° (AC type), and 40° (B type).

Core characteristics

Unidirectional axial load: can only withstand axial force in one direction. The reverse axial force requires another bearing (such as paired use).

Combined load capacity: The axial load capacity increases with the increase of the contact angle (when α=40°, the axial load capacity is about 2.3 times that of α=15°).

Preload-able: Apply preload force through paired installation to improve rigidity and rotation accuracy.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
7000	10	26	8
7001	12	28	8
7002	15	32	9
7003	17	35	10
7004	20	42	12
7005	25	47	12
7006	30	55	13
7007	35	62	14
7008	40	68	15
7009	45	75	16
7010	50	80	16
7011	55	90	18
7012	60	95	18
7013	65	100	18
7014	70	110	20
7015	75	115	20
7016	80	125	22
7017	85	130	22
7018	90	140	24
7019	95	145	24
7020	100	150	24
7021	105	160	26
7022	110	170	28
7024	120	180	28
7026	130	200	33
7028	140	210	33
7030	150	225	35
7032	160	240	38
7034	170	260	42
7036	180	280	46
7038	190	290	46
7040	200	310	51
7200	10	30	9
7201	12	32	10
7202	15	32	11
7203	17	40	12
7204	20	47	14
7205	25	52	15
7206	30	62	16
7207	35	72	17
7208	40	80	18
7209	45	85	19
7210	50	90	20
7211	55	100	21
7212	60	110	22
7213	65	120	23
7214	70	125	24
7215	75	130	25
7216	80	140	26
7217	85	150	28
7218	90	160	30
7219	95	170	32
7220	100	180	34
7221	105	190	36
7222	110	200	38
7224	120	215	40
7226	130	230	40
7228	140	250	42
7230	150	270	45
7232	160	290	48
7234	170	310	52
7236	180	320	52
7238	190	340	55
7240	200	360	58
7300	10	35	11
7301	12	37	12
7302	15	42	13
7303	17	47	14
7304	20	52	15
7305	25	62	17
7306	30	72	19
7307	35	80	21
7308	40	90	23
7309	45	100	25
7310	50	110	27
7311	55	120	29
7312	60	130	31
7313	65	140	33
7314	70	150	35
7315	75	160	37
7316	80	170	39
7317	85	180	41
7318	90	190	43
7319	95	200	45
7320	100	215	47
7321	105	225	49
7322	110	240	50
7324	120	260	55
7326	130	280	58
7328	140	300	62
7330	150	320	65
7332	160	340	68
7334	170	360	72
7336	180	380	75
7338	190	400	78
7340	200	420	80
