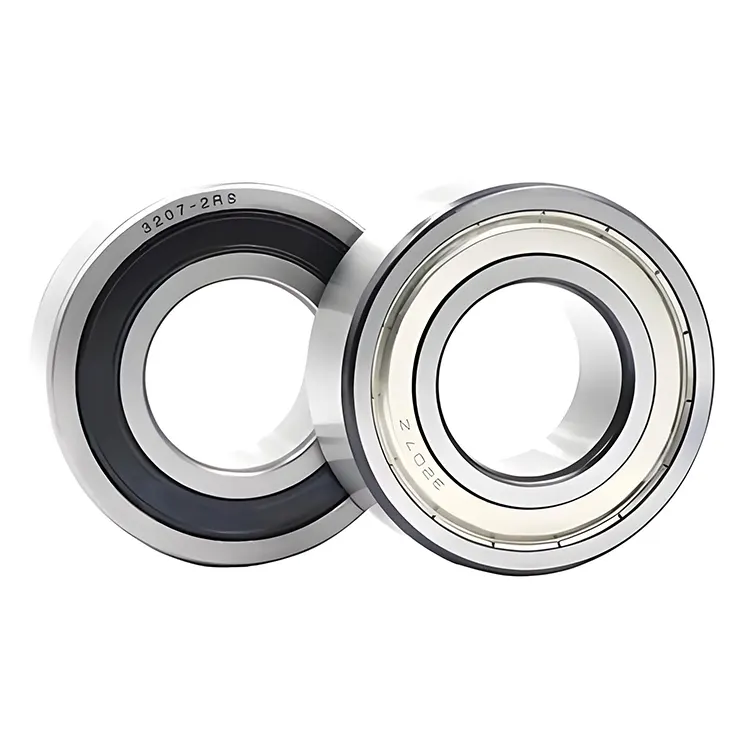

Double Row Angular Contact Ball Bearing

Komel Bearing Co.,Ltd is a leading Double Row Angular Contact Ball Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

The Double Row Angular Contact Ball Bearing produced by KOMEL can withstand bidirectional axial loads and high radial loads at the same time through the contact angle design of the two rows of steel balls and the inner and outer rings. They are suitable for scenarios that require high stiffness and bidirectional axial positioning (such as machine tool spindles andturbo-machinery).

Structural features

The two rows of steel balls are symmetrically distributed, and the contact angle is usually 25° or 30°.

Non-separable design, with integral flanges on the inner or outer ring.

Load capacity

The radial load capacity is about 1.6~1.8 times that of a single-row bearing.

Strong bidirectional axial load capacity, suitable for combined load conditions.

Rigidity and precision

High inherent stiffness, high-precision rotation can be achieved without preload.

Sensitive to installation errors (angle deviation needs to be <2 arc minutes).

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
3200	10	30	14
3201	12	32	15.9
3202	15	35	15.9
3203	17	40	17.5
3204	20	47	20.6
3205	25	52	20.6
3206	30	62	23.8
3207	35	72	27
3208	40	80	30.2
3209	45	85	30.2
3210	50	90	30.2
3211	55	100	33.3
3212	60	110	36.5
3213	65	120	38.1
3214	70	125	39.7
3215	75	130	41.3
3216	80	140	44.4
3217	85	150	49.2
3218	90	160	52.4
3219	95	170	55.6
3220	100	180	60.3
3302	15	42	19
3303	17	47	22.2
3304	20	52	22.2
3305	25	62	25.4
3306	30	72	30.2
3307	35	80	34.9
3308	40	90	36.5
3309	45	100	39.7
3310	50	110	44.4
3311	55	120	49.2
3312	60	130	54
3313	65	140	58.7
3314	70	150	63.5
3315	75	160	68.3
3316	80	170	68.3
3317	85	180	73
3318	90	190	73.025
3319	95	200	77.8
3320	100	215	82.6
3322	110	240	92.1
5200	10	30	14.3
5201	12	32	15.9
5202	15	35	15.9
5203	17	40	17.5
5204	20	47	20.6
5205	25	52	20.6
5206	30	62	23.8
5207	35	72	27
5208	40	80	30.2
5209	45	85	30.2
5210	50	90	30.2
5211	55	100	33.3
5212	60	110	36.5
5213	65	120	38.1
5214	70	125	39.7
5215	75	130	41.3
5216	80	140	44.4
5217	85	150	49.2
5218	90	160	52.4
5219	95	170	55.6
5220	100	180	60.3
5222	110	200	69.8
