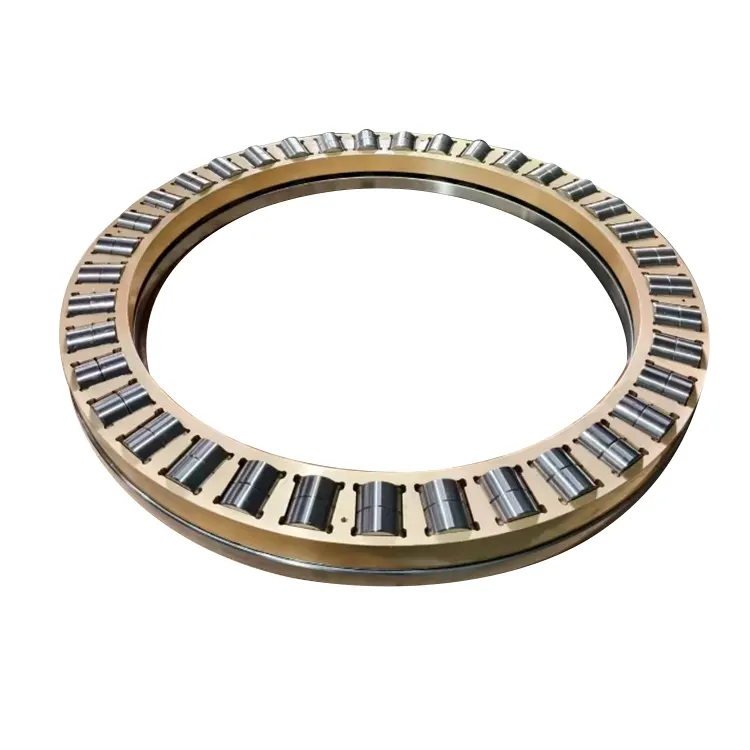

Thrust Cylindrical Roller Cone Crusher Bearing

Komel Bearing Co.,Ltd is a leading Thrust Cylindrical Roller Cone Crusher Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

The Thrust Cylindrical Roller Cone Crusher Bearing is one of the commonly used bearing types in cone crushers, mainly used to bear the axial load in cone crushers. The following is an introduction to its characteristics and application scenarios:

Strong Unidirectional Axial Load Capacity: It can bear a large unidirectional axial load, which is suitable for the working condition of unidirectional axial force generated during the operation of the cone crusher. For example, during the process of crushing materials in a cone crusher, a relatively large downward or upward axial force will be generated, and the thrust cylindrical roller bearing can effectively bear this force.

Separability: Components of the bearing such as rollers, cages, shaft rings, and seat rings are separable. This makes the installation, disassembly, cleaning, inspection, and maintenance of the cone crusher more convenient and efficient. For instance, during the regular maintenance of the cone crusher, the various components of the bearing can be easily separated for inspection and maintenance.

Adaptability to Harsh Working Conditions: Due to the harsh working environment of the cone crusher, which involves a lot of dust, vibration, and impact, the thrust cylindrical roller bearing has a relatively simple structure, and its separability enables it to better adapt to such harsh conditions. It is not prone to rapid damage due to external factors.

Application Scenarios: It is mainly applied to various models of cone crushers, usually serving as the lower thrust bearing of the cone crusher or other parts that need to bear unidirectional axial loads. For example, cone crushers of brands such as FLSmidth (EL), Metso (Cedarapids), and Sandvik (JCI) will use thrust cylindrical roller bearings as key load-bearing components in their specific models to ensure the stable operation and high-efficiency work of the equipment. For example, in the RC45 and RC54 models of cone crushers of FLSmidth, the lower thrust bearings adopt thrust cylindrical roller bearing.

Thrust Cylindrical Roller Cone Crusher Bearing

Parameter (Specification)

OEM	Model Number	Upper Radial cylindrical roller bearing	Lower Radial cylindrical roller bearing	Upper Thrust Taper Roller Cone Crusher Bearing	Lower Thrust cylindrical roller Cone Crusher bearing
ElJay(Cedarapids)	RC 36	E-1307-B	E-1307-B	E-2192-A	E-2191-A
	RC 45-I	E-2435-A	E-2435-A	E-2394-A	E-2306-A
	RC 45-II	E-2435-A	E-2435-A	E-2394-A	E-2306-A
	MVP 280	E-2435-A	E-2435-A	E-2394-A	E-2306-A
	MVP 380	E-2439-A	E-2454-A	E-2462-A	E-2408-A
	RC 54-I	E-2516-A	E-2447-A	E-2395-A	E-2259-A
	RC 54-II	E-2516-A	E-2447-A	E-2395-A	E-2259-A
	MVP 450	E-2516-A	E-2447-A	E-2461-A	E-2259-A
	RC 60	E-2265-A	E-2266-A	E-2267-A	E-2268-A
	MVP 550	E-2265-A	E-2266-A	E-2502-A	E-2268-A
	RC 66	E-2422-A	E-2423-A	E-2421-A	E-2311-A

JCI	1200 LS	J-900-A	J-900-A	J-938-A	J-903-A
	1400 LS	J-904-A	J-905-A	J-942-A	J-907-A
	K200	J-900-A	J-900-A	J-938-A	J-940-A
	K300	J-900-A	J-900-A	J-940-A	J-940-A
	K400	J-904-A	J-905-A	J-942-A	J-907-A

Pioneer (KPI)	48” Cone	P-1894-C	P-1785-C	P-1895-C	P-1895-C
	54” Cone	P-1784-C	P-1785-C	P-1761-C	P-1761-C

Telsmith	24, 24FC, 24S, 245S	--	--	S-4789-A	S-4789-A
	36 Style A	--	--	S-4831-A	S-4831-A
	36 Styles B,C and D, 36FC, 36S, 367S			S-4750-A	S-4790-A
	36 Styles B,C and D, 36FC, 36S, 367S	--	--	S-4750-A	S-4790-A
	36VFC	--	--	S-4750-A	S-4750-A
	48 Style A	--	--	S-3181-C	S-4831-A
	48 Styles Band D, 48FC, 48S, 489S			S-4791-A	S-4791-A
	48 Styles Band D, 48FC, 48S, 489S	--	--	S-4791-A	S-4791-A
	48 VFC	--	--	S-4792-A	S-4792-A
	48 Styles D and S, 489S, 48FC	--	--	S-3756-C	S-3756-C
	57 S (H Series) , 57FC (H Series)	--	--	S-4745-A	S-4745-A
	66 Styles CandD, 66FC, 66S, 6614S			S-4745-A	S-4745-A
	66 Styles CandD, 66FC, 66S, 6614S	--	--	S-4745-A	S-4745-A
	900	S-4402-C	S-4402-C	S-4750-A	S-4750-A
	1110	S-4402-C	S-4402-C	S-4791-A	S-4791-A
	1310 (Original)	S-4401-C or	S-4401-C or	S-4792-A	S-4792-A
	1310 (Current)	S-4870-A	S-4870-A	S-4792-A	S-4792-A
	1410 VFC	S-4400-C	S-4400-C	S-4864-A	S-4745-A
	1510	S-4400-C	S-4400-C	S-4745-A	S-4745-A
	1700	S-4403-C	S-4403-C	S-4358-C	S-4358-C

KOMEL bearings are meticulously engineered to meet the exacting demands of cone crusher operations. Our dedicated engineering team collaborates closely with original equipment manufacturers (OEMS) to develop a comprehensive range of custom - designed bearings, tailored specifically for the most popular cone crusher models in the market.

To ensure long - lasting durability, many of our bearing designs feature fully machined brass cages. However, when dealing with extremely high - capacity requirements, we employ alternative cage designs that are optimized to maximize load - carrying capabilities. At KOMEL, we also maintain strict control over key geometric features, guaranteeing seamless and trouble - free operation of our bearings under the harshest cone crusher conditions.

Cone crusher bearings from KOMEL offer an excellent repair option, especially considering their size and cost - effectiveness. In most cases, these bearings can be restored to their original, like - new specifications in less time and at a lower cost compared to purchasing new ones, all without compromising on performance. Our re-manufacturing service is available for any bearing type or brand, providing a sustainable and economical solution for our customers.

If you have specific requirements for cone crusher bearings, please do not hesitate to reach out to KOMEL. Our team is committed to responding promptly and providing you with the best - suited bearing solutions for your needs.
