Standard Spherical Roller Bearing

Komel Bearing Co.,Ltd is a leading Standard Spherical Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

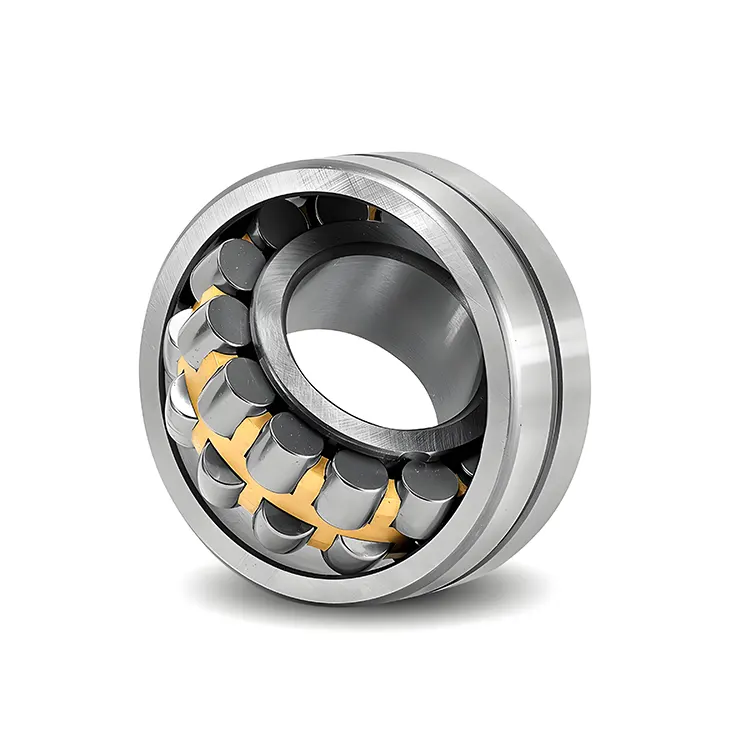

Standard spherical roller bearings from KOMEL consist of an inner ring, an outer ring, two rows of rollers, and a cage. There are rolled tracks on the inner and outer rings. The grooves in the inner ring are in a double row configuration, matching the rollers. The outer ring race track is spherical, and the special design allows the bearing to self-align. The cylinders are drum-shaped with two rows of rollers evenly distributed between the grooves of the inner rings. The cage is used to separate the coils so that they are evenly distributed and prevent the coils from touching and snagging. The products are widely used in the metallurgical industry, mining machinery, cement machinery, wind turbine main shafts and gearboxes.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
22205	25	52	18
22206	30	62	20
21306	30	72	19
22207	35	72	23
21307	35	80	21
22208	40	80	23
21308	40	90	23
22308	40	90	33
22209	45	85	23
21309	45	100	25
22309	45	100	36
22210	50	90	23
21310	50	110	27
22310	50	110	43
22211	55	100	25
21311	55	120	29
22311	55	120	43
22212	60	110	28
21312	60	130	31
22312	50	130	46
24013	65	100	35
22213	65	120	31
21313	60	140	33
22313	65	140	48
22214	70	125	31
21314	70	150	35
22314	70	150	51
24015	75	115	40
22215	75	130	31
21315	75	160	37
22315	75	160	55
22216	80	140	33
21316	80	170	39
22316	80	170	58
22217	85	150	36
21317	85	180	41
22317	85	180	60
22218	90	160	40
23218	90	160	52.4
21318	90	190	43
22318	90	190	64
22219	95	170	43
21319	95	200	45
22319	95	200	67
24020	100	150	50
23120	100	165	52
24120	100	165	65
22220	100	180	46
23220	100	180	60.3
21320	100	215	47
22320	100	215	73
23022	110	170	45
24022	110	170	60
23122	110	180	56
24122	110	180	69
22222	110	200	53
23222	110	200	69.8
22322	110	240	80
23024	120	180	46
24024	120	180	60
23124	120	200	62
24124	120	200	80
22224	120	215	58
23224	120	215	76
22324	120	260	86
23026	130	200	52
24026	130	200	69
23126	130	210	64
24126	130	210	80
22226	130	230	64
23226	130	230	80
22326	130	280	93
23028	140	210	53
24028	140	210	69
23128	140	225	68
24128	140	225	85
22228	140	250	68
23228	140	250	88
22328	140	300	102
23030	150	225	56
24030	150	225	75
23130	150	250	80
24130	150	250	100
22230	150	270	73
23230	150	270	96
22330	150	320	108
23032	160	240	60
24032	160	240	80
23132	160	270	86
24132	160	270	109
22232	160	290	80
23232	160	290	104
22332	160	340	114
23034	170	260	67
24034	170	260	90
23134	170	280	88
24134	170	280	109
22234	170	310	86
23234	170	310	110
22334	170	360	120
23936	180	250	52
23036	180	280	74
24036	180	280	100
23136	180	300	96
24136	180	300	118
22236	180	320	86
23236	180	320	112
22336	180	380	126
23938	190	260	52
23038	190	290	75
24038	190	290	100
23138	190	320	104
24138	190	320	128
22238	190	340	92
23238	190	340	120
22338	190	400	132
23940	200	280	60
23040	200	310	82
24040	200	310	109
23140	200	340	112
24140	200	340	140
22240	200	360	98
23240	200	360	128
22340	200	420	138
23944	220	300	60
23044	220	340	90
24044	220	340	118
23144	220	370	120
24144	220	370	150
22244	220	400	108
23244	220	400	144
22344	220	460	145
23948	240	320	60
23048	240	360	92
24048	240	360	118
23148	240	400	128
24148	240	400	160
22248	240	440	120
23248	240	440	160
22348	240	500	155
23952	260	360	75
23052	260	400	104
24052	260	400	140
23152	260	440	144
24152	260	440	180
22252	260	480	130
23252	260	480	174
22352	260	540	165
23956	280	380	75
23056	280	420	106
24056	280	420	140
23156	280	460	146
24156	280	460	180
22256	280	500	130
23256	280	500	176
22356	280	580	175
23860	300	380	60
23960	300	420	90
23060	300	460	118
24060	300	460	160
23160	300	500	160
24160	300	500	200
22260	300	540	140
23260	300	540	192
23964	320	440	90
23064	320	480	121
24064	320	480	160
23164	320	540	176
24164	320	540	218
22264	320	580	150
23264	320	580	208
23968	340	460	90
23068	340	520	133
24068	340	520	180
23168	340	580	190
24168	340	580	243
23268	340	620	224
23972	360	480	90
23072	360	540	134
24072	360	540	180
23172	360	600	192
24172	360	600	243
22272	360	650	170
23272	360	650	232
23976	380	520	106
23076	380	560	135
24076	380	560	180
23176	380	620	194
24176	380	620	243
23276	380	680	240
23980	400	540	106
23080	400	600	148
24080	400	600	200
23180	400	650	200
24180	400	650	250
23280	400	720	256
22380	400	820	243
23984	420	560	106
23084	420	620	150
24084	420	620	200
23184	420	700	224
24184	420	700	280
24284	420	760	272
23988	440	600	118
23088	440	650	157
24088	440	650	212
23188	440	720	226
24188	440	720	280
23288	440	790	280
24892	460	580	118
23992	460	620	118
23092	460	680	163
24092	460	680	218
23192	460	760	240
24192	460	760	300
23292	460	830	296
23896	480	600	90
23996	480	650	128
23096	480	700	165
24096	480	700	218
23196	480	790	248
24196	480	790	308
23296	480	870	310
238/500	500	620	90
239/500	500	670	128
230/500	500	720	167
240/500	500	720	218
231/500	500	830	264
241/500	500	830	325
232/500	500	920	336
248/530	530	650	118
239/530	530	710	136
230/530	530	780	185
240/530	530	780	250
231/530	530	870	272
241/530	530	870	335
232/530	530	980	355
239/560	560	750	140
230/560	560	820	195
240/560	560	820	258
231/560	560	920	280
241/560	560	920	355
232/560	560	1030	365
239/600	600	800	150
230/600	600	870	200
240/600	600	870	272
231/600	600	980	300
241/600	600	980	375
232/600	600	1090	388
238/630	630	780	112
239/630	630	850	165
230/630	630	920	212
240/630	630	920	290
231/630	630	1030	315
241/630	630	1030	400
238/670	670	820	112
248/670	670	820	150
239/670	670	900	170
230/670	670	980	230
240/670	670	980	308
231/670	670	1090	336
241/670	670	1090	412
232/670	670	1220	438
238/710	710	870	118
239/710	710	950	180
249/710	710	950	243
230/710	710	1030	236
240/710	710	1030	315
231/710	710	1150	345
241/710	710	1150	438
232/710	710	1280	450
238/750	750	920	128
239/750	750	1000	185
249/750	750	1000	250
230/750	750	1090	250
240/750	750	1090	335
231/750	750	1220	365
241/750	750	1220	475
232/750	750	1360	475
248/800	800	980	180
239/800	800	1060	195
249/800	800	1060	258
230/800	800	1150	258
240/800	800	1150	345
231/800	800	1280	375
241/800	800	1280	475
238/850	850	1030	136
239/850	850	1120	200
249/850	850	1120	272
230/850	850	1220	272
240/850	850	1220	365
231/850	850	1360	400
241/850	850	1360	500
248/900	900	1090	190
239/900	900	1180	206
230/900	900	1280	280
240/900	900	1280	375
241/900	900	1420	515
239/950	950	1250	224
249/950	950	1250	300
230/950	950	1360	300
240/950	950	1360	412
241/950	950	1500	545
238/1000	1000	1220	165
249/1000	1000	1320	315
230/1000	1000	1420	308
240/1000	1000	1420	412
231/1000	1000	1580	462
241/1000	1000	1580	580
238/1060	1060	1280	165
248/1060	1060	1280	218
239/1060	1060	1400	250
249/1060	1060	1400	335
230/1060	1060	1500	325
240/1060	1060	1500	438
248/1120	1120	1360	243
249/1120	1120	1460	335
240/1120	1120	1580	462
238/1180	1180	1420	180
248/1180	1180	1420	243
239/1180	1180	1540	272
249/1180	1180	1540	355
230/1250	1250	1750	375
248/1320	1320	1600	280
249/1320	1320	1720	400
248/1500	1500	1820	315
248/1800	1800	2180	375

Suffixes

Internal Design

BC: Bearings with a cast iron cage guided by the rollers, suitable for the main shafts of wind turbines.

CA/CAC: The inner ring has ribs on both sides, with a guide ring guided by the cage, and a machined brass cage.

CC(J)/CJ: The inner ring has no rib, with a guide ring guided by the cage, and two stamped steel cages.

CCJA/EJA: The inner ring has no rib, with a guide ring guided by the outer ring, and two stamped steel cages.

CAF: Similar to the CA type, but with a machined steel cage.

ECA/ECAC: Fork-shaped machined brass cage, the inner ring has ribs on both sides, with a guide ring guided by the inner ring and an enhanced roller set.

External Design (Seals, Snap Grooves, etc.)

-CS, -2CS: One side or both sides are equipped with contact NBR seals.

-CS2, -2CS2: One side or both sides are equipped with contact FKM seals.

-CS5, -2CS5: One side or both sides are equipped with contact HNBR seals.

-RS, -2RS: One side or both sides are equipped with contact NBR seals.

-RS5, -2RS5: One side or both sides are equipped with contact HNBR seals.

K: Tapered bore with a taper of 1:12.

K30: Tapered bore with a taper of 1:30.

Cage Design

F: Machined steel cage, guided by the inner ring.

FA: Machined steel cage, guided by the outer ring.

J: Stamped steel cage, guided by the inner ring.

JA: Stamped steel cage, guided by the outer ring.

MA: Machined brass cage, guided by the outer ring.

Material and Heat Treatment

235220: The inner ring is case-hardened, and the inner bore has a spiral groove.

HA3: The inner ring is case-hardened.

Precision, Clearance, Preload, and Quiet Operation

C08: The rotational accuracy meets the P5 tolerance grade.

C083: C08 + C3.

C084: C08 + C4.

C2: The radial internal clearance is smaller than the normal grade.

C3: The radial internal clearance is larger than the normal grade.

C4: The radial internal clearance is larger than C3.

C5: The radial internal clearance is larger than C4.

P5: The dimensional accuracy and rotational accuracy meet the P5 tolerance grade.

P6: The dimensional and rotational accuracy meet the P6 tolerance grade.

P62: P6 + C2.

Lubrication

GEM9: Filled with 70–100% of SKF LGHB 2 grease.

VT143: Filled with 25–45% of SKF LGEP 2 grease.

VT143C: Filled with 70–100% of SKF LGEP 2 grease.

W64: Solid oil.

W: The outer ring has no lubrication groove and lubrication holes.

W20: The outer ring has three lubrication holes.

W26: The inner ring has six lubrication holes.

W33: The outer ring has a lubrication groove and three lubrication holes.

W33X: The outer ring has a lubrication groove and six lubrication holes.

W77: Inserted W33 lubrication holes.

W513: W26 + W33.

Other Variants

R505: Bearings for railway axle boxes.

VA405: Bearings for vibrating machinery, with a case-hardened stamped steel cage.

VA406: Similar to VA405, but the inner bore of the cylindrical inner ring is coated with PTFE.

VA991: Bearings suitable for high-speed applications.

VE552(E): The outer ring on one side has three equidistant threaded holes for connecting lifting equipment. E indicates that the bearing is equipped with a lifting eye bolt.

VE553(E): Similar to VE552(E), but the outer ring on both sides has threaded holes.

VG114: Case-hardened stamped steel cage.

VQ424: The rotational accuracy is higher than C08.

Application

Metallurgical Industry

Rolling Mill: When a rolling mill rolls steel, it generates huge pressure and impact force. Thanks to its high load-carrying capacity and good self-aligning performance, the spherical roller bearing can bear the huge radial load of the rolling rolls. At the same time, it can compensate for the angular deviation caused by the installation of the rolling rolls and during the rolling process, ensuring the stable operation of the rolling rolls and improving the rolling quality of the steel.

Continuous Casting Machine: Parts such as the mold vibration device and conveying roller table of the continuous casting machine need to withstand high temperature, heavy load and certain impact load. Spherical roller bearings can adapt to these harsh working conditions, ensuring the continuous and stable operation of the continuous casting machine and improving production efficiency.

Mining Machinery

Crusher: When a crusher crushes materials such as ores, it will be subjected to strong impact and vibration. Spherical roller bearings can bear huge radial impact loads, and their self-aligning performance can effectively deal with the shaft deflection and vibration generated during the operation of the crusher, prolonging the service life of the bearings, reducing the number of equipment repairs and downtime.

Ball Mill: The grinding media and materials inside the ball mill exert a relatively large pressure on the cylinder, and the rotation of the cylinder will also cause the deflection deformation of the shaft. Spherical roller bearings can bear the heavy load of the ball mill, and at the same time, they can compensate for the shaft deformation through automatic self-aligning, ensuring the smooth rotation of the cylinder and improving the grinding efficiency.

Power Industry

Generator: When the rotor of a generator rotates at a high speed, it will generate a relatively large centrifugal force and electromagnetic force. At the same time, due to the relatively large weight of the rotor, there is a high requirement for the load-carrying capacity of the bearings. Spherical roller bearings can bear the radial load and a certain axial load of the generator rotor, and their self-aligning performance can ensure the stability of the rotor during high-speed rotation, reducing vibration and noise, and improving the operation efficiency and reliability of the generator.

Motor: In some large motors, especially those used to drive heavy-duty equipment, spherical roller bearings are widely used. It can bear the radial force generated during the operation of the motor and the angular deviation caused by installation errors, thermal expansion of the shaft and other reasons, ensuring the normal operation of the motor and reducing energy consumption.

Paper Machinery

Dryer: The drying section of a paper machine needs to dry the paper through drying rolls. During the operation of the drying rolls, they need to bear the weight and tension of the paper, and also adapt to different operating speeds and temperature changes. Spherical roller bearings can bear the radial load of the drying rolls, and their self-aligning performance can compensate for the shaft deflection caused by the thermal deformation of the drying rolls and installation errors, ensuring the smooth rotation of the drying rolls and improving the drying quality of the paper.

Calender: The calender rolls of a calendar need to carry out calendering treatment on the paper under high pressure to improve the flatness and glossiness of the paper. Spherical roller bearings can bear the high-pressure load of the calender rolls, and at the same time, ensure the parallelism and uniform contact between the calender rolls through the self-aligning function, thereby improving the calendering effect of the paper.

Construction Machinery

Excavator: Spherical roller bearings are required for parts such as the slewing mechanism, the connection parts of the stick and the boom of an excavator. These parts will bear complex loads during operation, including radial force, axial force and bending moment, etc. Spherical roller bearings can adapt to these complex load changes, and at the same time, ensure the flexible rotation of each part through the self-aligning performance, improving the work efficiency and reliability of the excavator.

Crane: Spherical roller bearings are also indispensable for key parts such as the slewing mechanism and the boom telescoping mechanism of a crane. It can bear the huge load generated during the hoisting and rotation of the crane, and its self-aligning performance can compensate for the shaft deflection caused by the deformation of the boom, installation errors, etc., ensuring the safe and stable operation of the crane.
