Split Spherical Roller Bearing

You can rest assured to buy Split Spherical Roller Bearing from Komel factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Komel Bearing Co.,Ltd is a leading Split Spherical Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

The following is the introduction of high quality split spherical roller bearing, hoping to help you better understand split spherical roller bearing. Welcome new and old customers to continue to cooperate with us to create a better future!

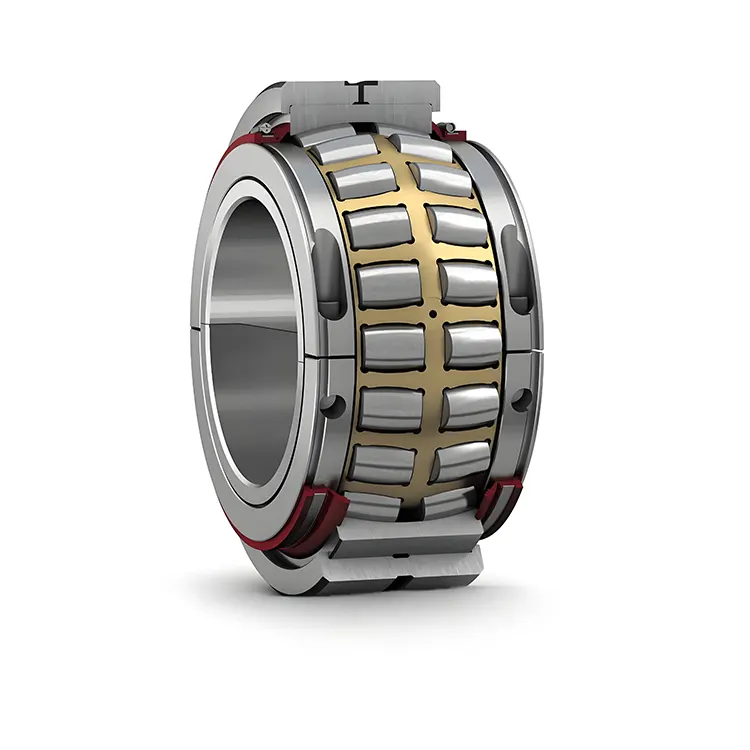

The Split Spherical Roller Bearing produced by KOMEL Company are different from ordinary spherical roller bearings. Their components such as the inner ring, outer ring and cage can be axially split into two halves. This structure makes it convenient during installation and disassembly. Without the need to axially move the shaft or other related components, the bearing can be installed onto the shaft or removed from the shaft, greatly improving the convenience of installation and maintenance. It is especially suitable for those occasions where integral installation and disassembly are difficult, such as large motors, mining machinery, metallurgical equipment, etc.

Aligning Function: It has good aligning performance. The rollers are drum-shaped, and the raceways of the inner and outer rings are spherical. It can automatically adapt to the misalignment between the shaft and the bearing housing, allowing the shaft to tilt within a certain angular range. Thus, it ensures the normal operation of the bearing and reduces the additional stress and wear caused by misalignment.

Rolling Elements and Cage: Cylindrical rollers are usually used as the rolling elements. With a relatively large number of rollers, it can bear a large radial load and a certain axial load. The cage is used to separate the rollers, guide the rollers to roll correctly, ensure the uniform distribution of the rollers, and reduce the friction and collision between the rollers. During the operation of the equipment, when the shaft has a certain degree of tilt or misalignment, the spherical raceways and drum-shaped rollers of the split spherical roller bearing can cooperate with each other, enabling the rollers to automatically adjust their positions on the raceways and maintain a good contact state. In this way, it can effectively bear the radial load and the additional load generated by misalignment, ensuring the stable operation of the shafting system. For example, in a mining crusher, due to the large vibration and impact generated during the operation of the equipment, the shaft is prone to offset and tilt. The split spherical roller bearing can exert its aligning function to ensure the normal rotation of the main shaft of the crusher and extend the service life of both the bearing and the entire equipment.

Split Spherical Roller Bearing

Parameter (Specification)

Description	Model Number	Inner diameter(mm)	Mass(kg)
Split Spherical Roller Bearing	231SM100-MA	100	6.8
Split Spherical Roller Bearing	222SM100-TVPA	100	8.88
Split Spherical Roller Bearing	230SM110-M A	110	5.26
Split Spherical Roller Bearing	231SM110-MA	110	9.51
Split Spherical Roller Bearing	222SM110-TVPA	110	10.6
Split Spherical Roller Bearing	230SM115-MA	115	9.5
Split Spherical Roller Bearing	231SM115-MA	115	11.2
Split Spherical Roller Bearing	222SM115-TVPA	115	14.3
Split Spherical Roller Bearing	230SM125-MA	125	10
Split Spherical Roller Bearing	231SM125-MA	125	13.5
Split Spherical Roller Bearing	222SM125-TVPA	125	17.9
Split Spherical Roller Bearing	230SM135-MA	135	13
Split Spherical Roller Bearing	231SM135-MA	135	19.5
Split Spherical Roller Bearing	222SM135-TVPA	135	24.1
Split Spherical Roller Bearing	230SM140-MA	140	15.5
Split Spherical Roller Bearing	231SM140-MA	140	25.8
Split Spherical Roller Bearing	222SM140-TVPA	140	28.5
Split Spherical Roller Bearing	230SM150-MA	150	17.4
Split Spherical Roller Bearing	231SM150-MA	150	28
Split Spherical Roller Bearing	222SM150-TVPA	150	35.5
Split Spherical Roller Bearing	230SM160-MA	160	24.4
Split Spherical Roller Bearing	231SM160-MA	160	32.7
Split Spherical Roller Bearing	222SM160-TVPA	160	37.6
Split Spherical Roller Bearing	230SM170-MA	170	23.6
Split Spherical Roller Bearing	231SM170-MA	170	40.6
Split Spherical Roller Bearing	222SM170-TVPA	170	43.6
Split Spherical Roller Bearing	230SM180-MA	180	30
Split Spherical Roller Bearing	231SM180-MA	180	56.4
Split Spherical Roller Bearing	222SM180-MA	180	52.7
Split Spherical Roller Bearing	230SM200-MA	200	45
Split Spherical Roller Bearing	231SM200-MA	200	61.8
Split Spherical Roller Bearing	222SM200-MA	200	69.6
Split Spherical Roller Bearing	230SM220-MA	220	42.6
Split Spherical Roller Bearing	231SM220-MA	220	86
Split Spherical Roller Bearing	222SM220-MA	220	90.9
Split Spherical Roller Bearing	230SM240-MA	240	57.4
Split Spherical Roller Bearing	231SM240-MA	240	118
Split Spherical Roller Bearing	222SM240-MA	240	136
Split Spherical Roller Bearing	230SM260-MA	260	63.6
Split Spherical Roller Bearing	231SM260-MA	260	109
Split Spherical Roller Bearing	222SM260-MA	260	147
Split Spherical Roller Bearing	230SM280-MA	280	96
Split Spherical Roller Bearing	231SM280-MA	280	160
Split Spherical Roller Bearing	222SM280-MA	280	157
Split Spherical Roller Bearing	230SM300-MA	300	108
Split Spherical Roller Bearing	231SM300-MA	300	184
Split Spherical Roller Bearing	222SM300-MA	300	214
Split Spherical Roller Bearing	230SM320-MA	320	122
Split Spherical Roller Bearing	231SM320-MA	320	226
Split Spherical Roller Bearing	222SM320-MA	320	245
Split Spherical Roller Bearing	230SM340-MA	340	150
Split Spherical Roller Bearing	231SM340-MA	340	314
Split Spherical Roller Bearing	222SM340-MA	340	267
Split Spherical Roller Bearing	230SM360-MA	360	165
Split Spherical Roller Bearing	231SM360-MA	360	292
Split Spherical Roller Bearing	230SM380-MA	380	187
Split Spherical Roller Bearing	231SM380-MA	380	326
Split Spherical Roller Bearing	230SM400-MA	400	214
Split Spherical Roller Bearing	231SM400-MA	400	371
Split Spherical Roller Bearing	230SM410-MA	410	246
Split Spherical Roller Bearing	230SM420-MA	420	246
Split Spherical Roller Bearing	222S.315	100.013	8.88
Split Spherical Roller Bearing	222S.400	101.6	8.83
Split Spherical Roller Bearing	222S.403	106.363	11
Split Spherical Roller Bearing	222S.407	112.713	14.7
Split Spherical Roller Bearing	222S.408	114.3	14.4
Split Spherical Roller Bearing	222S.415	125.413	17.8
Split Spherical Roller Bearing	222S.415-MA	125.413	17.9
Split Spherical Roller Bearing	222S.500	127	17.5
Split Spherical Roller Bearing	222S.503	131.763	25.2
Split Spherical Roller Bearing	222S.507	138.113	28.9
Split Spherical Roller Bearing	222S.507-MA	138.113	31.3
Split Spherical Roller Bearing	230S.508-MA	139.7	13.7
Split Spherical Roller Bearing	222S.508	139.7	28.6
Split Spherical Roller Bearing	222S.515	150.813	35.5
Split Spherical Roller Bearing	222S.600	152.4	36.5
Split Spherical Roller Bearing	230S.607-MA	163.513	24.4
Split Spherical Roller Bearing	231S.607-MA	163.513	34.4
Split Spherical Roller Bearing	222S.607	163.513	37.5
Split Spherical Roller Bearing	222S.608	165.1	37.8
Split Spherical Roller Bearing	222S.615	176.213	44.2
Split Spherical Roller Bearing	230S.700	177.8	21.1
Split Spherical Roller Bearing	222S.703	182.563	59
Split Spherical Roller Bearing	222S.708	190.5	73.3
Split Spherical Roller Bearing	222S.715	201.613	75.4
Split Spherical Roller Bearing	222S.800	203.2	74.7
Split Spherical Roller Bearing	230S.807	214.313	54.7
Split Spherical Roller Bearing	230S.808	215.9	58.9
Split Spherical Roller Bearing	230S.900	228.6	52.8
Split Spherical Roller Bearing	231S.907	239.713	113
Split Spherical Roller Bearing	230S.908	241.3	56.8
Split Spherical Roller Bearing	231S.915	260	116
Split Spherical Roller Bearing	230S.1000	254	71.2
Split Spherical Roller Bearing	230S.1008	266.7	59.7
Split Spherical Roller Bearing	230S.1100	279.4	91.7
Split Spherical Roller Bearing	231S.1100	279.4	160
Split Spherical Roller Bearing	230S.1200	304.8	96.5
Split Spherical Roller Bearing	231S.1200	304.8	184
Split Spherical Roller Bearing	230S.1300	330.2	165
Split Spherical Roller Bearing	231S.1300	330.2	288
Split Spherical Roller Bearing	230S.1400	355.6	158
Split Spherical Roller Bearing	231S.1400	355.6	273
Split Spherical Roller Bearing	230S.1500	381	192
Split Spherical Roller Bearing	231S.1500	381	296
Split Spherical Roller Bearing	230S.1600	406.4	225
Split Spherical Roller Bearing	231S.1600	406.4	547
Split Spherical Roller Bearing	240SM400-MA	400	385
Split Spherical Roller Bearing	231SM410-MA	410	566
Split Spherical Roller Bearing	231SM430-MA	430	624
Split Spherical Roller Bearing	230SM450-MA	450	291
Split Spherical Roller Bearing	230SM470-MA	470	354
Split Spherical Roller Bearing	241SM470-MA	470	725
Split Spherical Roller Bearing	230SM500-MA	500	344
Split Spherical Roller Bearing	241SM500-MA	500	725
Split Spherical Roller Bearing	239SM530-MA	530	295
Split Spherical Roller Bearing	230SM530-MA	530	556
Split Spherical Roller Bearing	241SM530-MA	530	1380
Split Spherical Roller Bearing	239SM560-MA	560	347
Split Spherical Roller Bearing	239SM600-MA	600	411
Split Spherical Roller Bearing	230SM630-MA	630	973

Suffixes

MA: It indicates a machined brass cage guided by the outer ring. This kind of cage has good strength and wear resistance, and is suitable for some occasions with high requirements for bearing performance. The guiding method of the outer ring can make the cage more stable during operation, which helps to improve the rotational accuracy and service life of the bearing.

TVPA: It represents a window-type solid cage made of glass fiber reinforced polyamide, guided by the outer ring. The glass fiber reinforced polyamidee material has the advantages of light weight, good self-lubrication, and corrosion resistance. It can maintain good performance under harsh working conditions such as high speed and high temperature. The structural design of the window-type solid cage can effectively guide the rolling elements, reduce the friction and collision between the rolling elements, and improve the operation efficiency of the bearing.

Application

Mining Machinery: Equipment such as crushers, ball mills, and conveyors usually operate under harsh working conditions, enduring huge impact loads and vibrations. The high load-bearing capacity and aligning performance of split spherical roller bearings can well adapt to these working conditions, ensuring the reliable operation of the equipment.

Metallurgical Equipment: Metallurgical equipment like blast furnaces, converters, and continuous casting machines have extremely high requirements for the reliability and stability of bearings. Split spherical roller bearings can work normally in environments with high temperatures, heavy dust, and heavy loads, providing strong support for the continuous production of metallurgical equipment.

Power Industry: The shafting systems of large generators, motors, and other power equipment are relatively long, and misalignment is likely to occur. Split spherical roller bearings can effectively compensate for the misalignment of the shaft, reducing vibrations and noises, and improving the operation efficiency and safety of power equipment.

Paper Machinery: Components such as the drying cylinders and press rolls of paper machines require high-precision bearing support. Split spherical roller bearings can not only bear relatively large radial loads but also adapt to the slight changes in the shafting system caused by factors such as thermal deformation of the equipment, ensuring the quality of the paper and the continuity of production.
