Split Cylindrical Roller Bearing

Komel Bearing Co.,Ltd is a leading Split Cylindrical Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

The Split Cylindrical Roller Bearing produced by KOMEL Company are different from ordinary cylindrical roller bearings. Their inner rings, outer rings, or both can be axially split into two halves. This design makes it convenient during installation and disassembly. Without the need to extract the shaft from the equipment or perform complex axial movements, the bearing can be installed onto the shaft or removed from the shaft, greatly improving the convenience of installation and maintenance.

Rolling Elements: Cylindrical rollers are used as the rolling elements. There is a line contact between the rollers and the raceways, enabling the bearing to bear a large radial load. The cylindrical rollers are numerous and evenly distributed, which helps to improve the load-bearing capacity and rigidity of the bearing.

Cage: A solid cage is usually equipped to separate the rollers, guide the rollers to roll correctly, ensure the uniform distribution of the rollers, reduce the friction and collision between the rollers, and improve the operation efficiency and stability of the bearing.

When the bearing is installed on the shaft and subjected to a radial load, the cylindrical rollers roll between the raceways of the inner and outer rings, evenly distributing the load on the raceways. Due to the line contact characteristic between the cylindrical rollers and the raceways, the bearing can bear a relatively large radial force.

The split structure enables the bearing to adapt to slight deformations of the shafting system or installation errors through slight adjustments at the split surface. It can, to a certain extent, compensate for misalignment, reduce the additional stress and wear caused by misalignment, and ensure the normal operation of the bearing.

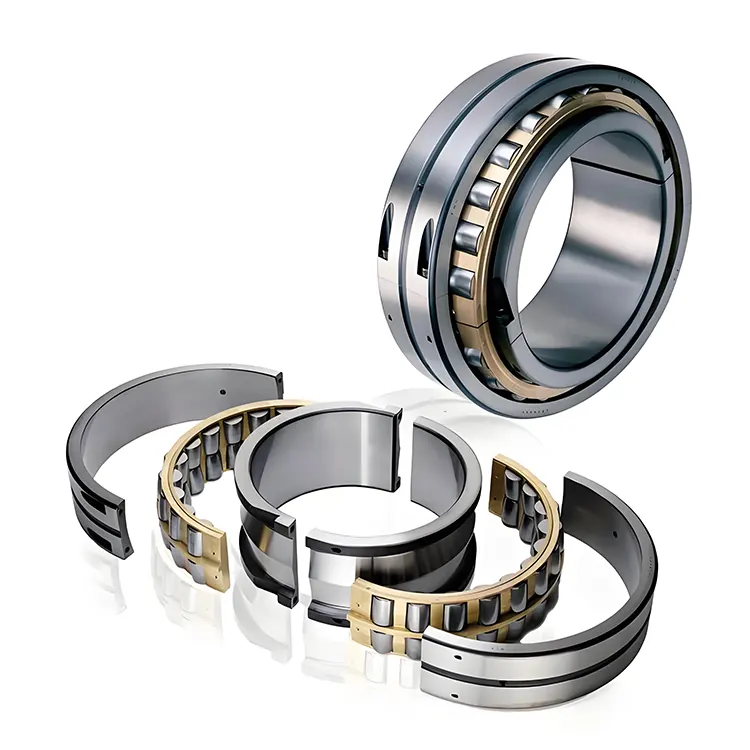

Split Cylindrical Roller Bearing

Parameter (Specification)

Description	Model Number	Outer diameter(mm)	Mass (kg)
Split Cylindrical Roller Bearing	01 B 35M	84.14	1.2
Split Cylindrical Roller Bearing	01 B 40M	84.14	1.2
Split Cylindrical Roller Bearing	01E B 45M	98.42	1.5
Split Cylindrical Roller Bearing	01E B 50M	98.42	1.5
Split Cylindrical Roller Bearing	02 B 50M	107.95	2
Split Cylindrical Roller Bearing	01E B 55M	114.3	1.8
Split Cylindrical Roller Bearing	01 E B 60M	114.3	1.8
Split Cylindrical Roller Bearing	02 B 60M	127	3
Split Cylindrical Roller Bearing	01 E B 65M	114.3	1.8
Split Cylindrical Roller Bearing	02 B 65M	127	3
Split Cylindrical Roller Bearing	01 E B 70M	133.35	2.5
Split Cylindrical Roller Bearing	02 B 70M	149.22	5
Split Cylindrical Roller Bearing	100 B 75M	114.3	1.2
Split Cylindrical Roller Bearing	01 E B 75M	133.35	2.5
Split Cylindrical Roller Bearing	02 B 75M	149.22	5
Split Cylindrical Roller Bearing	01 E B 80M	152.4	4
Split Cylindrical Roller Bearing	02 B 80M	169.86	7
Split Cylindrical Roller Bearing	100 B 85M	133.35	2.1
Split Cylindrical Roller Bearing	01 E B 85M	152.4	4
Split Cylindrical Roller Bearing	02 B 85M	169.86	7
Split Cylindrical Roller Bearing	01 E B 90M	152.4	4
Split Cylindrical Roller Bearing	02 B 90M	169.86	7
Split Cylindrical Roller Bearing	01 E B 95M	174.62	6
Split Cylindrical Roller Bearing	100 B 100M	152.4	2.8
Split Cylindrical Roller Bearing	01E B 100M	174.62	6
Split Cylindrical Roller Bearing	02 B 100M	193.68	9
Split Cylindrical Roller Bearing	03 B 100M	254	30
Split Cylindrical Roller Bearing	01E B 105M	174.62	6
Split Cylindrical Roller Bearing	02 B 105M	193.68	9
Split Cylindrical Roller Bearing	100 B 110M	174.62	4.6
Split Cylindrical Roller Bearing	01 B 110M	203.2	10.2
Split Cylindrical Roller Bearing	02 B 110M	228.6	16
Split Cylindrical Roller Bearing	03 B 110M	266.7	36
Split Cylindrical Roller Bearing	01 B 115M	203.2	10.2
Split Cylindrical Roller Bearing	02 B 115M	228.6	16
Split Cylindrical Roller Bearing	100 B 120M	203.2	7.4
Split Cylindrical Roller Bearing	01 B 120M	222.95	12.8
Split Cylindrical Roller Bearing	02 B 120M	254	20
Split Cylindrical Roller Bearing	03 B 120M	266.7	36
Split Cylindrical Roller Bearing	01 B 125M	222.25	12.8
Split Cylindrical Roller Bearing	02 B 125M	254	20
Split Cylindrical Roller Bearing	100 B 130M	203.2	7.4
Split Cylindrical Roller Bearing	01 B 130M	222.25	12.8
Split Cylindrical Roller Bearing	02 B 130M	254	20
Split Cylindrical Roller Bearing	03 B 130M	279.4	36
Split Cylindrical Roller Bearing	01 B 135M	241.3	15
Split Cylindrical Roller Bearing	02 B 135M	273.05	24
Split Cylindrical Roller Bearing	100 B 140M	222.25	9.3
Split Cylindrical Roller Bearing	01 B 140M	241.3	15
Split Cylindrical Roller Bearing	02 B 140M	273.05	24
Split Cylindrical Roller Bearing	03 B 140M	304.8	44
Split Cylindrical Roller Bearing	02 B 145M	273.05	24
Split Cylindrical Roller Bearing	100 B 150M	241.3	10.4
Split Cylindrical Roller Bearing	01B 150M	254	16.6
Split Cylindrical Roller Bearing	02 B 150M	292.1	29
Split Cylindrical Roller Bearing	03 B150M	330.2	57
Split Cylindrical Roller Bearing	01 B 155M	254	16.6
Split Cylindrical Roller Bearing	02 B 155M	292.1	29
Split Cylindrical Roller Bearing	01 B 600-160M	254	16.6
Split Cylindrical Roller Bearing	01 B 160M	273.05	21
Split Cylindrical Roller Bearing	02 B 600-160M	292.1	29
Split Cylindrical Roller Bearing	02 B 160M	317.5	39
Split Cylindrical Roller Bearing	03 B 160M	355.6	72
Split Cylindrical Roller Bearing	01 B 608-170M	273.05	21
Split Cylindrical Roller Bearing	01 B 170M	285.75	23
Split Cylindrical Roller Bearing	02 B 170M	317.5	39
Split Cylindrical Roller Bearing	03 B 170M	355.6	72
Split Cylindrical Roller Bearing	01 B 175M	285.75	23
Split Cylindrical Roller Bearing	02 B 175M	330.2	45
Split Cylindrical Roller Bearing	01 B 180M	285.75	23
Split Cylindrical Roller Bearing	02 B 180M	330.2	45
Split Cylindrical Roller Bearing	03 B 180M	374.65	79
Split Cylindrical Roller Bearing	01 B 190M	311.15	25
Split Cylindrical Roller Bearing	02 B 190M	368.3	59
Split Cylindrical Roller Bearing	03 B 190M	419.1	105
Split Cylindrical Roller Bearing	01 B 200M	311.15	25
Split Cylindrical Roller Bearing	02 B 200M	368.3	59
Split Cylindrical Roller Bearing	03 B 200M	419.1	105
Split Cylindrical Roller Bearing	01 B 220M	342.9	32
Split Cylindrical Roller Bearing	02 B 220M	393.7	68
Split Cylindrical Roller Bearing	03 B 220M	469.9	145
Split Cylindrical Roller Bearing	01 B 230M	342.9	32
Split Cylindrical Roller Bearing	02 B 230M	393.7	68
Split Cylindrical Roller Bearing	01 B 240M	374.65	40
Split Cylindrical Roller Bearing	02 B 240M	431.8	77
Split Cylindrical Roller Bearing	03 B 240M	482.6	150
Split Cylindrical Roller Bearing	01 B 250M	374.65	40
Split Cylindrical Roller Bearing	02 B 250M	431.8	77
Split Cylindrical Roller Bearing	03 B 250M	482.6	150
Split Cylindrical Roller Bearing	01 B 1000-260M	374.65	40
Split Cylindrical Roller Bearing	01 B 260M	406.4	50
Split Cylindrical Roller Bearing	02 B 260M	431.8	77
Split Cylindrical Roller Bearing	03 B 260M	482.6	150
Split Cylindrical Roller Bearing	01 B 270M	406.4	50
Split Cylindrical Roller Bearing	01 B 275M	406.4	50
Split Cylindrical Roller Bearing	01 B 280M	406.4	50
Split Cylindrical Roller Bearing	02 B 280M	463.55	86
Split Cylindrical Roller Bearing	03 X B 280M	520.7	197
Split Cylindrical Roller Bearing	03X B 280M	495.3	182
Split Cylindrical Roller Bearing	01 B 290M	438.15	60
Split Cylindrical Roller Bearing	03 B 290M	558.8	238
Split Cylindrical Roller Bearing	01 B 300M	438.15	60
Split Cylindrical Roller Bearing	02 B 300M	495.3	123
Split Cylindrical Roller Bearing	03 B 300M	558.8	238
Split Cylindrical Roller Bearing	01 B 320M	463.55	72
Split Cylindrical Roller Bearing	02 B 320M	527.05	150
Split Cylindrical Roller Bearing	03 B 320M	622.3	327
Split Cylindrical Roller Bearing	01 B 330M	463.55	72
Split Cylindrical Roller Bearing	02 B 330M	527.05	150
Split Cylindrical Roller Bearing	01 B 1300-340M	463.55	72
Split Cylindrical Roller Bearing	01 B 340M	488.95	78
Split Cylindrical Roller Bearing	02 B 340M	565.15	182
Split Cylindrical Roller Bearing	03 E B 340M	615.95	318
Split Cylindrical Roller Bearing	01 B 350M	488.95	78
Split Cylindrical Roller Bearing	02 B 350M	565.15	182
Split Cylindrical Roller Bearing	01 B 1400-360M	488.95	78
Split Cylindrical Roller Bearing	01 B 360M	520.7	86
Split Cylindrical Roller Bearing	02 B 360M	565.15	182
Split Cylindrical Roller Bearing	03 E B 360M	615.95	318
Split Cylindrical Roller Bearing	03 X B 360M	647.7	372
Split Cylindrical Roller Bearing	01 B 380M	520.7	86
Split Cylindrical Roller Bearing	02 B 380M	584.2	186
Split Cylindrical Roller Bearing	03 B 380M	685.8	431
Split Cylindrical Roller Bearing	01 B 390M	546.1	95
Split Cylindrical Roller Bearing	01 B 400M	546.1	95
Split Cylindrical Roller Bearing	02 B 400M	615.95	209
Split Cylindrical Roller Bearing	03 B 400M	685.8	431
Split Cylindrical Roller Bearing	01 B 420M	571.5	104
Split Cylindrical Roller Bearing	02 B 420M	647.7	241
Split Cylindrical Roller Bearing	03 E B 420M	700	395
Split Cylindrical Roller Bearing	01 B 440M	596.9	114
Split Cylindrical Roller Bearing	02 B 440M	666.75	250
Split Cylindrical Roller Bearing	03 E B 440M	700	395
Split Cylindrical Roller Bearing	01 B 460M	596.9	114
Split Cylindrical Roller Bearing	02 B 460M	666.75	250
Split Cylindrical Roller Bearing	03 E B 460M	740	431
Split Cylindrical Roller Bearing	03 X B 460M	800.1	630
Split Cylindrical Roller Bearing	01 B 480M	628.65	128
Split Cylindrical Roller Bearing	02 B 480M	698.5	263
Split Cylindrical Roller Bearing	03X B 480M	800.1	630
Split Cylindrical Roller Bearing	01 B 500M	654.05	136
Split Cylindrical Roller Bearing	02 B 500M	717.55	272
Split Cylindrical Roller Bearing	03 B 500M	850.9	730
Split Cylindrical Roller Bearing	01 B 530M	692.15	164
Split Cylindrical Roller Bearing	02 B 530M	762	309
Split Cylindrical Roller Bearing	03 B 530M	850.9	730
Split Cylindrical Roller Bearing	01 B 560M	717.55	178
Split Cylindrical Roller Bearing	02 B 560M	793.75	336
Split Cylindrical Roller Bearing	03 E 560M	863.6	635
Split Cylindrical Roller Bearing	01 B 580M	749.3	195
Split Cylindrical Roller Bearing	02 B 580M	812.8	340
Split Cylindrical Roller Bearing	01 B 600M	774.7	210
Split Cylindrical Roller Bearing	02 B 600M	838.2	381
Split Cylindrical Roller Bearing	03 E B 600M	890	680
Split Cylindrical Roller Bearing	01 B 103	84.14	1.2
Split Cylindrical Roller Bearing	01 B 104	84.14	1.2
Split Cylindrical Roller Bearing	01 B 107	84.14	1.2
Split Cylindrical Roller Bearing	01 B 108	84.14	1.2
Split Cylindrical Roller Bearing	01 E B 111	98.42	1.5
Split Cylindrical Roller Bearing	01 E B 112	98.42	1.5
Split Cylindrical Roller Bearing	01 E B 115	98.42	1.5
Split Cylindrical Roller Bearing	02 B 115	107.95	2
Split Cylindrical Roller Bearing	01 E B 200	98.42	1.5
Split Cylindrical Roller Bearing	02 B 200	107.95	2
Split Cylindrical Roller Bearing	01 E B 203	114.3	1.8
Split Cylindrical Roller Bearing	02 B 203	127	3
Split Cylindrical Roller Bearing	01 E B 204	114.3	1.8
Split Cylindrical Roller Bearing	02 B 204	127	3
Split Cylindrical Roller Bearing	01 E B 207	114.3	1.8
Split Cylindrical Roller Bearing	02 B 207	127	3
Split Cylindrical Roller Bearing	01 E B 208	114.3	1.8
Split Cylindrical Roller Bearing	02 B 208	127	3
Split Cylindrical Roller Bearing	01 E B 211	133.35	2.5
Split Cylindrical Roller Bearing	02 B 211	149.22	5
Split Cylindrical Roller Bearing	01 E B 212	133.35	2.5
Split Cylindrical Roller Bearing	02 B 212	149.22	5
Split Cylindrical Roller Bearing	100 B 215	114.3	1.2
Split Cylindrical Roller Bearing	01 E B 215	133.35	2.5
Split Cylindrical Roller Bearing	02 B 215	149.22	5
Split Cylindrical Roller Bearing	100 B 300	114.3	1.2
Split Cylindrical Roller Bearing	01 E B 300	133.35	2.5
Split Cylindrical Roller Bearing	02 B 300	149.22	5
Split Cylindrical Roller Bearing	01 E B 303	152.4	4
Split Cylindrical Roller Bearing	02 B 303	169.86	7
Split Cylindrical Roller Bearing	01 E B 304	152.4	4
Split Cylindrical Roller Bearing	02 B 304	169.86	7
Split Cylindrical Roller Bearing	100 B 307	133.35	2.1
Split Cylindrical Roller Bearing	01 E B 307	152.4	4
Split Cylindrical Roller Bearing	02 B 307	169.86	7
Split Cylindrical Roller Bearing	01 E B 308	152.4	4
Split Cylindrical Roller Bearing	02 B 308	169.86	7
Split Cylindrical Roller Bearing	01 E B 311	174.62	6
Split Cylindrical Roller Bearing	02 B 311	193.68	9
Split Cylindrical Roller Bearing	01 E B 312	174.62	6
Split Cylindrical Roller Bearing	02 B 312	193.68	9
Split Cylindrical Roller Bearing	100 B 315	152.4	2.8
Split Cylindrical Roller Bearing	01E B 315	174.62	6
Split Cylindrical Roller Bearing	02 B 315	193.68	9
Split Cylindrical Roller Bearing	03 B 315	254	30
Split Cylindrical Roller Bearing	100 B 400	152.4	2.8
Split Cylindrical Roller Bearing	01E B 400	174.62	6
Split Cylindrical Roller Bearing	02 B 400	193.68	9
Split Cylindrical Roller Bearing	03 B 400	254	30
Split Cylindrical Roller Bearing	01 B 403	203.2	10.2
Split Cylindrical Roller Bearing	02 B 403	228.6	16
Split Cylindrical Roller Bearing	100 B 40	174.62	4.6
Split Cylindrical Roller Bearing	01 B 407	203.2	10.2
Split Cylindrical Roller Bearing	02 B 407	228.6	16
Split Cylindrical Roller Bearing	03 B 407	266.7	36
Split Cylindrical Roller Bearing	100 B 40	174.62	4.6
Split Cylindrical Roller Bearing	01 B 408	203.2	10.2
Split Cylindrical Roller Bearing	02 B 408	228.6	16
Split Cylindrical Roller Bearing	03 B 408	266.7	36
Split Cylindrical Roller Bearing	100 B 41	203.2	7.4
Split Cylindrical Roller Bearing	01 B 415	222.25	12.8
Split Cylindrical Roller Bearing	02 B 415	254	20
Split Cylindrical Roller Bearing	03 B 415	279.4	36
Split Cylindrical Roller Bearing	100 B 50	203.2	7.4
Split Cylindrical Roller Bearing	01 B 500	222.25	12.8
Split Cylindrical Roller Bearing	02 B 500	254	20
Split Cylindrical Roller Bearing	03 B 500	279.4	36
Split Cylindrical Roller Bearing	01 B 503	241.3	15
Split Cylindrical Roller Bearing	02 B 503	273.05	24
Split Cylindrical Roller Bearing	100 B 507	222.25	9.3
Split Cylindrical Roller Bearing	01 B 507	241.3	15
Split Cylindrical Roller Bearing	02 B 507	273.05	24
Split Cylindrical Roller Bearing	03 B 507	304.8	44
Split Cylindrical Roller Bearing	100 B 508	222.25	9.3
Split Cylindrical Roller Bearing	01 B 508	241.3	15
Split Cylindrical Roller Bearing	02 B 508	273.05	24
Split Cylindrical Roller Bearing	03 B 508	304.8	44
Split Cylindrical Roller Bearing	100 B 515	241.3	10.4
Split Cylindrical Roller Bearing	01 B 515	254	16.6
Split Cylindrical Roller Bearing	02 B 515	292.1	29
Split Cylindrical Roller Bearing	03 B 515	330.2	57
Split Cylindrical Roller Bearing	100 B 600	241.3	10.4
Split Cylindrical Roller Bearing	01 B 600	254	16.6
Split Cylindrical Roller Bearing	02 B 600	292.1	29
Split Cylindrical Roller Bearing	03 B 600	330.2	57
Split Cylindrical Roller Bearing	01 B 607	273.05	21
Split Cylindrical Roller Bearing	02 B 607	317.5	39
Split Cylindrical Roller Bearing	03 B 607	355.6	72
Split Cylindrical Roller Bearing	01 B 608	273.05	21
Split Cylindrical Roller Bearing	02 B 608	317.5	39
Split Cylindrical Roller Bearing	03 B 608	355.6	72
Split Cylindrical Roller Bearing	01 B 615	285.75	23
Split Cylindrical Roller Bearing	02 B 615	330.2	45
Split Cylindrical Roller Bearing	03 B 615	374.65	79
Split Cylindrical Roller Bearing	01 B 700	285.75	23
Split Cylindrical Roller Bearing	02 B 700	330.2	45
Split Cylindrical Roller Bearing	03 B 700	374.65	79
Split Cylindrical Roller Bearing	01 B 715	311.15	25
Split Cylindrical Roller Bearing	02 B 715	368.3	59
Split Cylindrical Roller Bearing	03 B 715	419.1	105
Split Cylindrical Roller Bearing	01 B 800	311.15	25
Split Cylindrical Roller Bearing	02 B 800	368.3	59
Split Cylindrical Roller Bearing	03 B 800	419.1	105
Split Cylindrical Roller Bearing	01 B 900	342.9	32
Split Cylindrical Roller Bearing	02 B 900	393.7	68
Split Cylindrical Roller Bearing	03 B 900	469.9	145
Split Cylindrical Roller Bearing	01 B 10000	374.65	40
Split Cylindrical Roller Bearing	02 B 10000	431.8	77
Split Cylindrical Roller Bearing	03 B 10000	482.6	150
Split Cylindrical Roller Bearing	01 B 1100	406.4	50
Split Cylindrical Roller Bearing	02 B 1100	463.55	86
Split Cylindrical Roller Bearing	03 X B 1100	520.7	197
Split Cylindrical Roller Bearing	03 E B 1100	495.3	182
Split Cylindrical Roller Bearing	01 B 1200	438.15	60
Split Cylindrical Roller Bearing	02 B 1200	495.3	123
Split Cylindrical Roller Bearing	03 B 1200	558.8	238
Split Cylindrical Roller Bearing	01 B 1300	463.55	72
Split Cylindrical Roller Bearing	02 B 1300	527.05	150
Split Cylindrical Roller Bearing	03 B 1300	622.3	327
Split Cylindrical Roller Bearing	01 B 1400	488.95	78
Split Cylindrical Roller Bearing	02 B 1400	565.15	182
Split Cylindrical Roller Bearing	03 E B 1400	615.95	318
Split Cylindrical Roller Bearing	01 B 1500	520.7	86
Split Cylindrical Roller Bearing	02 B 1500	584.2	186
Split Cylindrical Roller Bearing	03 B 1500	685.8	431
Split Cylindrical Roller Bearing	01 B 1600	546.1	95
Split Cylindrical Roller Bearing	02 B 1600	615.95	209
Split Cylindrical Roller Bearing	01 B 1700	571.5	104
Split Cylindrical Roller Bearing	02 B 1700	647.7	241
Split Cylindrical Roller Bearing	03 E B 1700	700	395
Split Cylindrical Roller Bearing	01 B 1800	596.9	114
Split Cylindrical Roller Bearing	02 B 1800	666.75	250
Split Cylindrical Roller Bearing	03 E B 1800	740	431
Split Cylindrical Roller Bearing	01 B 1900	628.65	128
Split Cylindrical Roller Bearing	02 B 1900	698.5	263
Split Cylindrical Roller Bearing	01 B 2000	654.05	136
Split Cylindrical Roller Bearing	02 B 2000	717.55	272
Split Cylindrical Roller Bearing	03 B 2000	850.9	730
Split Cylindrical Roller Bearing	01 B 2100	692.15	164
Split Cylindrical Roller Bearing	02 B 2100	762	309
Split Cylindrical Roller Bearing	01 B 2200	717.55	178
Split Cylindrical Roller Bearing	02 B 2200	793.75	336
Split Cylindrical Roller Bearing	03 E B 2200	863.6	635
Split Cylindrical Roller Bearing	01 B 2300	749.3	195
Split Cylindrical Roller Bearing	02 B 2300	812.8	340
Split Cylindrical Roller Bearing	03 E B 2300	890	680
Split Cylindrical Roller Bearing	01 B 2400	774.7	210
Split Cylindrical Roller Bearing	02 B 2400	838.2	381

Suffixes

MA: It indicates a machined brass cage guided by the outer ring. This kind of cage has good strength and wear resistance, and is suitable for some occasions with high requirements for bearing performance. The guiding method of the outer ring can make the cage more stable during operation, which helps to improve the rotational accuracy and service life of the bearing.It features a machined brass cage that is guided by the outer ring. This cage has high strength and wear resistance and is suitable for applications with high requirements on bearing performance. Due to the outer ring guidance, the cage maintains higher stability during operation, thus improving the rotation accuracy of the bearing and extending its service life.

TVPA: Our product is a window-type solid cage made of glass fiber reinforced polyamide material, guided by the outer ring. The structural design of the window-type solid cage can effectively guide the rolling elements, reduce friction and collision between rolling elements, and improve the operating efficiency of the bearing. Glass fiber reinforced polyamide material has the advantages of light weight, good self-lubrication, and corrosion resistance. It can still maintain good performance under harsh working conditions such as high speed and high temperature.

Application

Mining Machinery: Equipment such as crushers and ball mills generate huge impact loads and vibrations during operation. Thanks to their high load-bearing capacity and good adaptability, split cylindrical roller bearings can withstand the loads under such harsh working conditions, ensuring the reliable operation of the equipment.

Metallurgical Equipment: Metallurgical equipment such as blast furnaces and continuous casting machines usually operate in high temperature, dusty and heavy-load environments, which places high demands on the reliability and stability of bearings. Split cylindrical roller bearings can work normally in such environments, providing strong support for the continuous production of metallurgical equipment.

Power Industry: The shafting systems of large generators, motors, and other power equipment are relatively long, and misalignment is likely to occur. Split cylindrical roller bearings can effectively compensate for the misalignment of the shaft, reduce vibrations and noises, and improve the operation efficiency and safety of power equipment.

Paper Machinery: Components such as the drying cylinders and press rolls of paper machines require high-precision bearing support. Split cylindrical roller bearings can not only bear relatively large radial loads but also adapt to the slight changes in the shafting system caused by factors such as thermal deformation of the equipment, ensuring the quality of the paper and the continuity of production.

Hot Tags: Split Cylindrical Roller Bearing

Related Category
