Single Row Cylindrical Roller Bearing

Komel Bearing Co.,Ltd is a leading Single Row Cylindrical Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

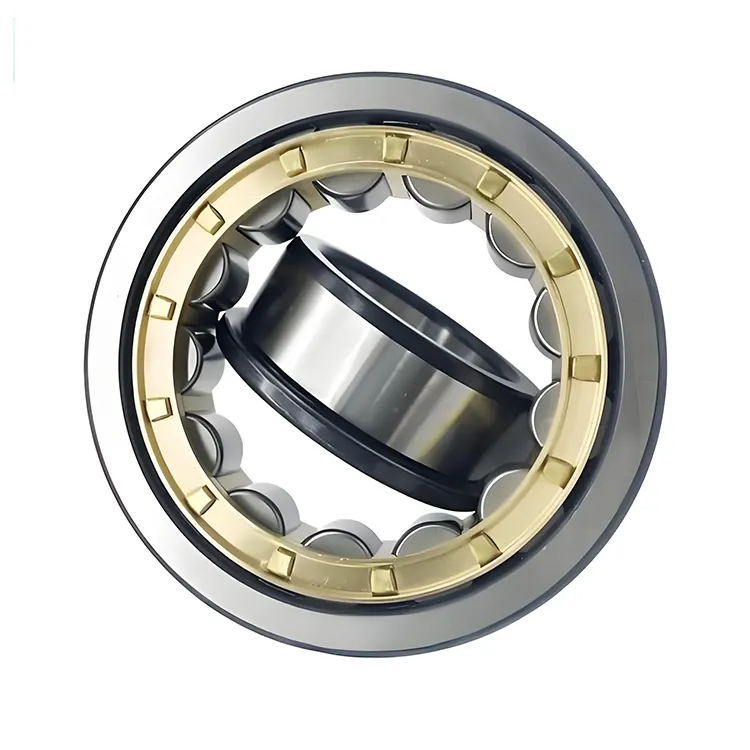

The high quality Single Row Cylindrical Roller Bearingg unit manufactured by KOMEL consists of an inner ring, an outer ring, a cylindrical roller and a cage. Both the inner and outer rings have race tracks, and the circular roller is located in the middle of the race track. The function of the mechanism is to isolate the windings throughout, to prevent the windings from rubbing against each other and from straining, and to ensure normal and smooth operation. Cylindrical rollers are directly connected to the raceway, allowing the bearing to withstand high radial loads. There are different styles. Typically, some types have no ribs on the inner or outer rings, some types have one rib on both the inner and outer rings, some types have two ribs on both the inner and outer rings, and so on. These bearings have high radial load capacity, low critical torque, high rotational speed, and are easy to install and remove, and are widely used in machine tool manufacturing, automotive, steel, and mining in many industries.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
NU 202	15	35	11
NJ 202	15	35	11
NJ 203	17	40	12
NU 203	17	40	12
NU 2203	17	40	16
NU 303	17	47	14
NUP 2203	17	40	16
NJ 204	20	47	14
NJ 2204	20	47	18
NJ 2304	20	52	11
NJ 304	20	52	15
NU 204	20	47	14
NU 2204	20	47	18
NU 2304	20	52	11
NU 304	20	52	15
NUP 204	20	47	14
NUP 2204	20	47	18
NUP 304	20	52	15
NUP 2304	20	52	21
N 205	25	52	15
N 305	25	62	17
NJ 205	25	52	15
NJ 2205	25	52	18
NJ 305	25	62	17
NJ 2305	25	62	24
NU 1005	25	47	12
NU 205	25	52	15
NU 2205	25	52	18
NU 305	25	62	17
NU 2305	25	62	24
NU 405	25	80	24
NUP 205	25	52	15
NUP 2205	25	52	18
NUP 2305	25	62	24
NUP 305	25	62	17
NUP 405	25	80	24
N 206	30	62	16
N 306	30	72	19
N 2306	30	72	27
NJ 206	30	62	16
NJ 2206	30	62	20
NJ 306	30	72	19
NJ 2306	30	72	27
NJ 406	30	90	23
NU 206	30	62	16
NU 2206	30	62	20
NU 306	30	72	19
NU 406	30	90	23
NU 2306	30	72	27
NUP 206	30	62	16
NUP 2206	30	62	20
NUP 306	30	72	19
NUP 2306	30	72	27
N 207	35	72	17
N 307	35	80	21
NJ 207	35	72	17
NJ 2207	35	72	23
NJ 307	35	80	27
NJ 2307	35	80	31
NJ 407	35	100	25
NU 1007	35	62	14
NU 207	35	72	17
NU 2207	35	72	23
NU 307	35	80	21
NU 2307	35	80	31
NU 407	35	100	25
NUP 207	35	70	27
NUP 2207	35	72	23
NUP 307	35	80	21
NUP 2307	35	80	31
N 208	40	80	18
N 308	40	90	23
N 408	40	110	27
NJ 208	40	80	18
NJ 2208	40	80	23
NJ 308	40	90	23
NJ 2308	40	90	33
NJ 408	40	110	27
NU 1008	40	68	15
NU 208	40	80	18
NU 2208	40	80	23
NU 308	40	90	23
NU 2308	40	90	33
NU 408	40	110	27
NUP 208	40	80	18
NUP 2208	40	80	23
NUP 308	40	90	23
NUP 2308	40	90	33
NUP 408	40	110	27
N 209	45	85	19
N 309	45	100	25
N 409	45	120	29
NJ 209	45	85	19
NJ 2209	45	85	23
NJ 309	45	100	25
NJ 2309	45	100	36
NJ 409	45	120	29
NU 1009	45	75	16
NU 209	45	85	19
NU 2209	45	85	23
NU 309	45	100	25
NU 2309	45	100	36
NU 409	45	120	29
NUP 209	45	85	19
NUP 2209	45	85	23
NUP 309	45	100	25
NUP 2309	45	100	36
NUP 409	45	120	29
N 210	50	90	20
N 310	50	110	27
N 410	50	130	31
NJ 210	50	90	20
NJ 2210	50	90	23
NJ 310	50	110	27
NJ 2310	50	110	40
NJ 410	50	130	31
NU 1010	50	80	16
NU 210	50	90	20
NU 2210	50	90	23
NU 310	50	110	40
NU 410	50	130	31
NUP 210	50	90	20
NUP 2210	50	90	23
NUP 310	50	110	27
NUP 2310	50	110	40
N 211	55	100	21
N 311	55	120	29
N 411	55	140	33
NJ 211	55	100	21
NJ 2211	55	100	25
NJ 311	55	120	29
NJ 2311	55	120	43
NJ 411	55	140	43
NU 1011	55	90	18
NU 211	55	100	21
NU 2211	55	100	25
NU 2311	55	120	43
NU 311	55	120	29
NU 411	55	140	33
NUP 211	55	100	21
NUP 2211	55	100	25
NUP 311	55	120	29
NUP 2311	55	120	43
NUP 411	55	140	33
N 212	60	110	22
N 312	60	130	31
N 2312	60	130	46
NJ 212	60	110	22
NJ 2212	60	110	28
NJ 312	60	130	31
NJ 2312	60	130	46
NJ 412	60	150	35
NU 1012	60	95	18
NU 212	60	110	22
NU 2212	60	110	28
NU 312	60	130	31
NU 2312	60	130	46
NU 412	60	150	35
NUP 212	60	110	22
NUP 2212	60	110	28
NUP 312	60	130	31
NUP 2312	60	130	46
NUP 412	60	150	35
N 213	65	140	23
N 313	65	140	33
NJ 213	65	120	23
NJ 2213	65	120	31
NJ 313	65	140	33
NJ 2313	65	140	48
NJ 413	65	160	37
NU 1013	65	100	18
NU 213	65	120	23
NU 2213	65	120	31
NU 313	65	140	33
NU 2313	65	140	48
NU 413	65	160	37
NUP 213	65	120	23
NUP 2213	65	120	31
NU 313	65	140	33
NU 2313	65	140	48
NU 413	65	160	37
NUP 213	65	120	23
NUP 2213	65	120	31
NUP 313	65	140	33
NUP 2313	65	140	48
NUP 413	65	160	37

Suffixes

Related to internal design

· E: Enhanced design. This design usually means an increase in the number of rolling elements, optimization of their sizes, or improvement in the cage structure, thereby enhancing the bearing's load - carrying capacity. For example, some single - row cylindrical roller bearings of SKF with the suffix "E" feature an optimized internal geometry and cage design, resulting in higher rated loads.

· EM: Enhanced design with a machined brass cage. Compared with ordinary cages, the machined brass cage has better strength and wear resistance, making it suitable for more demanding working conditions.

· MA: It uses a machined brass cage guided by the outer ring. This type of cage can provide good lubrication and heat dissipation performance. Meanwhile, the outer - ring guidance ensures the stability of the cage during high - speed rotation.

Related to tolerance class

· P0: Normal tolerance class. This is the most common tolerance class, suitable for most general industrial applications.

· P6: A tolerance class stricter than P0. It is applicable to situations where a certain level of rotational accuracy is required, such as the feed axes of machine tools.

· P5: Higher precision than P6. It is commonly used in the main shafts of high - precision machine tools, aerospace equipment, and other fields with extremely high precision requirements.

Related to clearance

· C1: Smaller than the normal clearance. It is suitable for situations where strict control of axial and radial displacements is required, such as the main shafts of precision machine tools.

· C2: The clearance is smaller than the normal clearance but larger than C1. It is used when a certain level of clearance control is needed but not as strict.

· CN: Normal clearance. It is the most commonly used clearance class, suitable for most general industrial applications.

· C3: The clearance is larger than the normal clearance. It is often used in high - temperature environments or when the interference fit between the shaft and the bearing housing is relatively large, to compensate for the decrease in clearance caused by temperature changes or the fit.

· C4: The clearance is larger than C3. It is suitable for higher - temperature environments or larger interference fits.

· C5: The largest clearance. It is generally used in special working conditions with high temperature, high speed, or large interference fits.

Application

Machine tool industry: It is commonly used in the main shafts of machine tools. It can withstand the radial cutting forces during the machining process of machine tools, ensuring the rotational accuracy and stability of the main shaft, thus improving the machining accuracy and surface quality.

Motor industry: In electric motors, single-row cylindrical roller bearings are used to support the rotor, bearing the weight of the rotor and the radial forces generated during operation to ensure the normal operation of the motor.

Metallurgical equipment: For example, the working roll and backup roll bearings of rolling mills can withstand the huge radial loads during the rolling process, ensuring the stable operation of the rolls and the rolling accuracy.

Mining machinery: In equipment such as crushers and ball mills, single-row cylindrical roller bearings are used to support heavy-duty components, bearing the impacts and loads generated during the crushing and grinding of ores.
