Full Complement Cylindrical Roller Bearing

Komel Bearing Co.,Ltd is a leading Full Complement Cylindrical Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

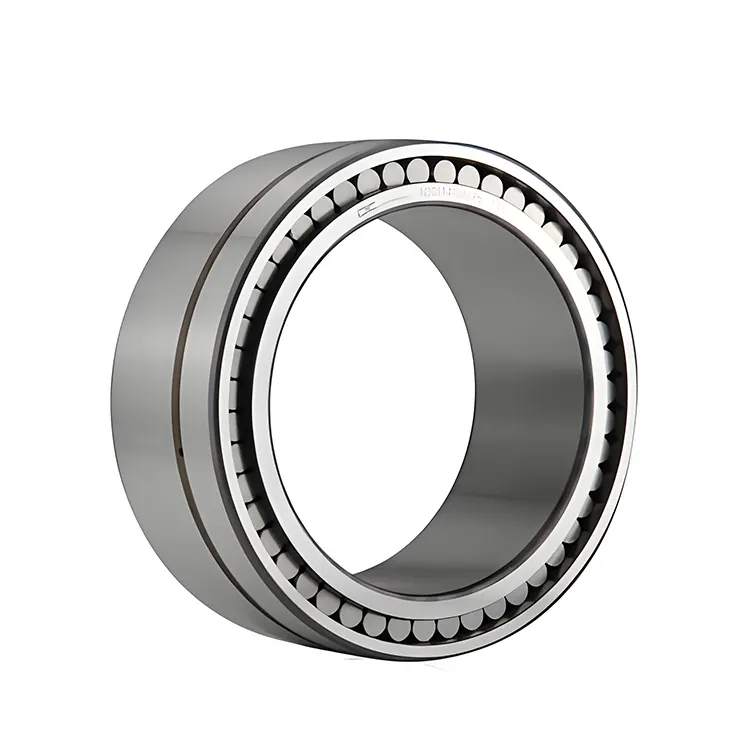

Komel's high quality Full Complement Cylindrical Roller Bearings have no support structure but are filled with cylindrical bearings between the inner and outer rings. This design increases the number of rollers in the bearing, thus increasing the contact area between the bearing and the raceway. There is no support frame to fill the space, the wheels are arranged closer to each other, and the radial weight on the carrier is smaller. This can provide greater weight-carrying capacity in a smaller space. These bearings have the characteristics of high weight, high strength, compact structure, and low rotational speed. Our company's full-service cylindrical wheelchairs are widely used in heavy machinery, lifting and transport equipment, industrial vehicles and fast-moving heavy machinery.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
NCF 2920	100	140	24
NCF 3020	100	150	37
NCF 3024	120	180	46
NCF 2926	130	180	30
NCF 3026	130	200	52
NCF 2928	140	190	30
NCF 3028	140	210	53
NCF 2930	150	210	36
NCF 3030	150	225	56
NCF 2932	160	220	36
NCF 3032	160	260	60
NCF 2934	170	230	36
NCF 3034	170	260	67
NCF 2936	180	250	42
NCF 3036	180	280	74
NCF 2938	190	260	42
NCF 3038	190	290	75
NCF 1840	200	250	24
NCF 2940	200	280	48
NCF 3040	200	310	82
NCF 1844	220	270	24
NCF 2944	220	300	48
NCF 3044	220	340	90
NCF 1848	240	300	28
NCF 2948	240	320	48
NCF 3048	240	360	92
NCF 1852	260	320	28
NCF 2952	260	360	60
NCF 3052	260	400	104
NCF 1856	280	350	33
NCF 2956	280	380	60
NCF 3056	280	420	106
NCF 1860	300	380	38
NCF 4860	300	380	80
NCF 2960	300	420	72
NCF 3060	300	460	118
NCF 1864	320	400	38
NCF 2964	320	440	72
NCF 3064	320	480	121
NCF 1868	320	440	38
NCF 2968	340	460	72
NCF 3068	340	520	133
NCF 1872	360	440	38
NCF 2972	360	480	72
NCF 3072	360	540	134
NCF 1876	380	480	46
NCF 2976	380	520	82
NCF 3076	380	560	135
NCF 1880	400	500	46
NCF 2980	400	540	82
NCF 3080	400	600	148
NCF 1888	440	540	46
NCF 2988	440	600	95
NCF 3088	440	650	157
NCF 1892	460	580	56
NCF 2992	460	620	95
NCF 3092	460	680	163
NCF 1896	480	600	72
NCF 2996	480	650	100
NCF 3096	480	700	165
NCF 18/500	500	620	56
NCF 28/500	500	620	72
NCF 29/500	500	670	100
NCF 30/500	500	720	167
NCF 18/530	530	650	56
NCF 28/530	530	650	72
NCF 29/530	530	710	106
NCF 30/530	530	780	185
NCF 18/560	560	680	56
NCF 28/560	560	680	72
NCF 29/560	560	750	112
NCF 30/560	560	820	195
NCF 18/600	600	730	60
NCF 29/600	600	800	118
NCF 18/630	630	780	69
NCF 29/630	630	850	128
NCF 18/670	670	820	69
NCF 28/670	670	820	88
NCF 29/670	670	900	136
NCF 29/710	610	950	140
NCF 18/750	750	920	78
NCF 28/750	750	920	100
NCF 29/750	750	1000	145
NCF 18/800	800	980	82
NCF 28/800	800	980	106
NCF 29/800	800	1060	150
NCF 29/850	850	1120	155
NCF 29/900	900	1180	165
NCF 29/950	950	1250	175
NCF 29/1000	1000	1320	185
NCF 18/1120	1120	1360	106
NCF 18/1400	1400	1700	132

Suffixes

Related to internal design

· E: Enhanced design. This design usually means an increase in the number of rolling elements, optimization of their sizes, or improvement in the cage structure, thereby enhancing the bearing's load - carrying capacity. For example, some single - row cylindrical roller bearings of SKF with the suffix "E" feature an optimized internal geometry and cage design, resulting in higher rated loads.

· EM: Enhanced design with a machined brass cage. Compared with ordinary cages, the machined brass cage has better strength and wear resistance, making it suitable for more demanding working conditions.

· MA: It uses a machined brass cage guided by the outer ring. This type of cage can provide good lubrication and heat dissipation performance. Meanwhile, the outer - ring guidance ensures the stability of the cage during high - speed rotation.

Related to tolerance class

· P0: Normal tolerance class. This is the most common tolerance class, suitable for most general industrial applications.

· P6: A tolerance class stricter than P0. It is applicable to situations where a certain level of rotational accuracy is required, such as the feed axes of machine tools.

· P5: Higher precision than P6. It is commonly used in the main shafts of high - precision machine tools, aerospace equipment, and other fields with extremely high precision requirements.

Related to clearance

· C1: Smaller than the normal clearance. It is suitable for situations where strict control of axial and radial displacements is required, such as the main shafts of precision machine tools.

· C2: The clearance is smaller than the normal clearance but larger than C1. It is used when a certain level of clearance control is needed but not as strict.

· CN: Normal clearance. It is the most commonly used clearance class, suitable for most general industrial applications.

· C3: The clearance is larger than the normal clearance. It is often used in high - temperature environments or when the interference fit between the shaft and the bearing housing is relatively large, to compensate for the decrease in clearance caused by temperature changes or the fit.

· C4: The clearance is larger than C3. It is suitable for higher - temperature environments or larger interference fits.

· C5: The largest clearance. It is generally used in special working conditions with high temperature, high speed, or large interference fits.

Application

Machine tool industry: It is commonly used in the main shafts of machine tools. It can withstand the radial cutting forces during the machining process of machine tools, ensuring the rotational accuracy and stability of the main shaft, thus improving the machining accuracy and surface quality.

Motor industry: In electric motors, single-row cylindrical roller bearings are used to support the rotor, bearing the weight of the rotor and the radial forces generated during operation to ensure the normal operation of the motor.

Metallurgical equipment: For example, the working roll and backup roll bearings of rolling mills can withstand the huge radial loads during the rolling process, ensuring the stable operation of the rolls and the rolling accuracy.

Mining machinery: In equipment such as crushers and ball mills, single-row cylindrical roller bearings are used to support heavy-duty components, bearing the impacts and loads generated during the crushing and grinding of ores.
