Needle Roller Bearing

Komel Bearing Co.,Ltd is a leading Needle Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

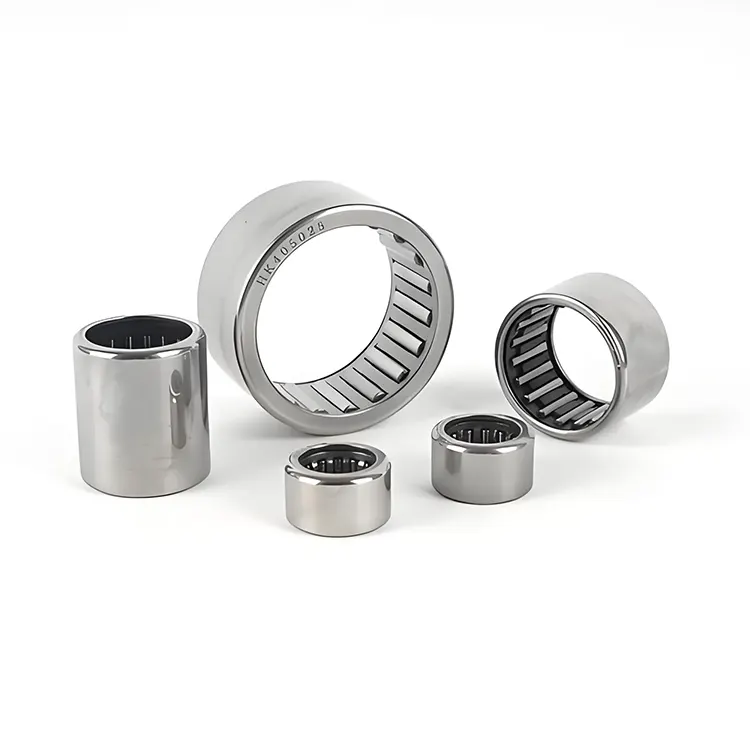

KOMEL needle roller bearings are highly efficient and are a type of roller consisting of a single needle, a support frame, an inner ring and an outer ring. Sometimes designs without an inner or outer ring are also available.

Needle roller bearings have a large length-to-diameter ratio. Typically, the diameter is less than 5 mm and the length is several times the diameter. This method allows the needle roller bearing to accommodate more rotating parts than other types of bearings with the same radius, and therefore has a higher load capacity. At the same time, the contact area between the needle rollers is small and the friction coefficient is low, so the rotation is smooth.

They are widely used in industries such as automobiles, industrial machinery, aircraft, medical equipment and housing.

Parameter (Specification)

Bearing Designation	Mass Approx	Boundary Dimensions
		Boundary Dimensions
		Fw	D	C
		Fw	D	C
	g	mm
HK0306TN		3	6.5	6
BK0306TN		3	6.5	6
HK0408TN	1.6	4	8	8
BK0408TN	1.8	4	8	8
HK0509TN		5	11	9
HK0509	2	5	9	9
BK0509	2.1	5	9	9
HK0510		5	9	10
HK0606		6	10	6
HK0607	1.8	6	10	7
HK0608	2.1	6	10	8
BK0608	2.2	6	10	8
HK0609	2.2	6	10	9
BK0609	2.6	6	10	9
HK0611	2.3	6	10	11
HK06X12X8	2.5	6	12	8
HK0708		7	11	8
HK0709	2.3	7	11	9
BK0709	2.9	7	11	9
HK0712		7	11	12
HK07X12X08	2.2	7	12	8
HK07X12X09	2.4	7	12	9
HK0808	2.7	8	12	8
HK0808TN		8	12	8
BK0808	3	8	12	8
HK0810	3	8	12	10
BK0810	3.4	8	12	10
HK0812		8	12	12
HK08X14X10	5.35	8	14	10
BK08X14X10	5.8	8	14	10
HK08X14X12	6.6	8	14	12
HK0908	3	9	13	8
BK0908	3.4	9	13	8
HK0910	4	9	13	10
BK0910	4.3	9	13	10
HK0911	4.1	9	13	11
HK0912	4.6	9	13	12
BK0912	4.9	9	13	12
HK09X15X10	5.6	9	15	10
HK10X13X08	3.5	10	13	8
HK1010	4.1	10	14	10
BK1010	4.3	10	14	10
HK1012	4.8	10	14	12
BK1012	5	10	14	12
HK1015	6	10	14	15
BK1015	6.2	10	14	15
HK10X15X15	6.5	10	15	15
HK10X16X10	6.5	10	16	10
BK10X16X10	6.8	10	16	10
HK10X16X12	7.5	10	16	12
HK10X16X15	11	10	16	15
HK10X17X15	11.5	10	17	15
HK10X18X12	8.5	10	18	12
HK1208	3.3	12	16	8
HK1210	4.6	12	16	10
BK1210	5.2	12	16	10
HK1212	5.6	12	18	12
BK1212	6.2	12	16	12
HK12X17X12	7.5	12	17	12
HK12X17X15	9.5	12	17	15
HK12X17X18	11	12	17	18
HK12X18X12	9.1	12	18	12
BK12X18X12	10.3	12	18	12
HK12X18X14	10.6	12	18	14
HK12X19X12	10	12	19	12
HK1311	8.5	13	19	11
HK1312	8.9	13	19	12
BK1312	11.2	13	19	12
HK13.5X19X12		13.5	19	12
HK13.5X20X12	10.8	13.5	20	12
HK1410	8.3	14	20	10
BK1410	12.1	14	20	10
HK1412	10.5	14	20	12
HK1416	13.9	14	20	16
HK1418		14	20	18
HK15X20X12	8.4	15	20	12
HK15X20X16	11.4	15	20	16
HK15X20X20	13.8	15	20	20
HK1512	11.1	15	21	12
BK1512	12.7	15	21	12
HK1514	12.7	15	21	14
HK1515	14.2	15	21	15
BK1515		15	21	15
TA1515		15	22	15
TA1515Z		15	22	15
HMK1515		15	22	15
HK1516	15	15	21	16
BK1516	16.5	15	21	16
HK1518		15	21	18
HK1520		15	21	20
HMK1520		15	22	20
HK1522	20.4	15	21	22
BK1522	22	15	21	22
HK15X22X12	12.5	15	22	12
HK15X22X12.5	13.5	15	22	12.5
HK16X21X06	5.5	16	21	6
HK16X21X09	7.5	16	21	9
HK1610		16	22	10
HK1612	11.7	16	22	12
BK1612	13.8	16	22	12
HK1612K		16	22	12
HK1614	14.4	16	22	14
HK1616	15.8	16	22	16
BK1616	17.6	16	22	16
HK1616-ASI		16	22	16
HK1617	18	16	22	17
HK1620		16	22	20
HK1622	21.7	16	22	22
BK1622	23.4	16	22	22
HK17X21.5X15	10	17	21.5	15
HK1712	12.2	17	23	12
BK1712	14.5	17	23	12
HK1714	14	17	23	14
HK1716	15.9	17	23	16
BK1716		17	23	16
HK1718	19	17	23	18
HK1720		17	23	20
HK1722	17	17	23	22
HK17X24X15	17	17	24	15
HK17X25X14	17.7	17	25	14
HK17X25X15.5	20	17	25	15.5
HK17X25X18	23.5	17	25	18
HK1812	13.1	18	24	12
BK1812	14.9	18	24	12
HK1816	17.5	18	24	16
BK1816	19.9	18	24	16
HK18X24X20	18	18	24	20
HMK1825		18	25	25
HK19X27X16	23	19	27	16
HK2010	11.8	20	26	10
BK2010	14	20	26	10
HK2011	12	20	26	11
HK2012	14.1	20	26	12
BK2012	16.7	20	26	12
HK2014	15.7	20	26	14
HK2016	19.3	20	26	16
BK2016	22.3	20	26	16
HK2018	23.3	20	26	18
HK2020	24.1	20	26	20
BK2020	27.1	20	26	20
HK2025	28	20	26	25
HK2030	41	20	26	30
BK2030	43	20	26	30
HK20X27X18		20	27	18
HK20X27X20		20	27	20
HK20X27X30		20	27	30
HK20X28X16	28.5	20	28	16
HK20X29X18	41	20	29	18
HK22X28X7.5TN	8.8	22	28	7.5
HK2210	12.3	22	28	10
HK2212	15	22	28	12
BK2212	18.1	22	28	12
HK2216	20.9	22	28	16
BK2216	24.3	22	28	16
HK2220	26.2	22	28	20
BK2220	29.9	22	28	20
HMK2225		22	29	25
HK2230	32	22	28	30
HK22X29X25	37	22	29	25
HK22X25X30	43	22	29	30
HK22X30X14	21.9	22	30	14
HK24X30X7.5TN	10.6	24	30	7.5
HK2512	20	25	32	12
BK2512	23.2	25	32	12
HK2514	21.9	25	32	14
HK2516	27.3	25	32	16
BK2516	31	25	32	16
HK2518	28.2	25	32	18
HK2520	34.1	25	32	20
BK2520	38.7	25	32	20
HK2525	40	25	32	25
HK2526	44.8	25	32	26
BK2526	49	25	32	26
HK2538	64.7	25	32	38
BK2538	69	25	32	38
HK25X33X10	17	25	33	10
HK25X33X15	27.4	25	33	15
HK25X35X20	44.9	25	35	20
HK2812		28	35	12
HK2816	30.1	28	35	16
BK2816	34.1	28	35	16
HK2818	31.7	28	35	18
HK2820	37.6	28	35	20
BK2820	43	28	35	20
HK2825		28	35	25
HK2830		28	35	30
HK2833		28	35	33
HK3012	24	30	37	12
BK3012	27.9	30	37	12
HK3016	32	30	37	16
BK3016	37.1	30	37	16
HK3018	33.6	30	37	18
HK3020	40.1	30	37	20
BK3020	46.5	30	37	20
HK3020-K		30	37	20
HMK3020		30	40	20
HK3024		30	37	24
HMK3025		30	40	25
HK3026	52.9	30	37	26
BK3026	59.4	30	37	26
HK3030		30	37	30
HMK3030		30	40	30
HK3038	76.1	30	37	38
BK3038	82.5	30	37	38
HK30X38X12	28	30	38	12
HK30X38X16	32.7	30	38	16
HK30X38X24	49	30	38	24
HK30X38X32	69	30	38	32
HK32X38X11	17	32	38	11
HMK3220		32	42	20
HK3224	50.7	32	38	24
HK3232	66.4	32	39	32
HK32X19X16		32	19	16
HK32X40X32	72.7	32	39	32
HK32X41X16		32	41	16
HK3512	27.7	35	40	12
BK3512	32.9	35	42	12
HK3516	36.9	35	42	16
BK3516	43.8	35	42	16
HK3520	46.1	35	42	20
BK3520	54.8	35	42	20
HK3520/ASI		35	42	20
HK3524		35	42	24
BK3530		35	42	30
HK3530		35	42	30
HMK3520		35	45	20
HMK3525		35	45	25
HMK3530		35	45	30
HK35X42X16	37	35	42	16
HK35X43X25	60.5	35	43	25
HK35X43X32	80	35	43	32
HK35X45X12	31	35	45	12
HK36X42X12	23	36	42	12
HK3818		38	45	18
HK38X48X30	102	38	48	30
HK4012	31.1	40	47	12
BK4012	38.2	40	47	12
HK4016	41.4	40	47	16
BK4016	51	40	47	16
HK4020	51.8	40	47	20
BK4020	62	40	47	20
HK4020/ASI		40	47	20
HK4026		40	47	26
HK4030		40	47	30
HMK4020		40	50	20
HK4025		40	50	25
HMK4030		40	50	30
HK40X50X32	114.3	40	50	32
HK40X50X38	130.8	40	50	38
HK4512	34.8	45	52	12
BK4512	45	45	52	12
HK4512-K		45	52	12
HK4516	46.2	45	52	16
BK4516	56	45	52	16
HK4520	56	45	52	20
BK4520	72	45	52	20
HK4520-ASI		45	52	20
HK4520-K		45	52	20
HK4520-YA		45	52	20
HMK4525		45	55	25
HMK4530		45	55	30
HMK4538		45	55	38
HK45X55X38	135	45	55	38
HK50X57X16	51.2	50	57	16
HK5012	44.2	50	58	12
HK5020	72	50	58	20
BK5020	87.3	50	58	20
HK5025	90.1	50	58	25
BK5025	109	50	58	25
HK50X60X38	140	50	60	38
HK5520	78	55	63	20
BK5520	93.8	55	63	20
HK5525	109	55	63	25
TLA 1812		18	24	12
TLA 1816		18	24	16
TA 1813	16.4	18	25	13
TA 1815	18.5	18	25	15
TA 1817	21	18	25	17
TA 1916	23	19	27	16
TA 1920	29	19	27	20
TLA 2012		20	26	12
TLA 2016		20	26	16
TLAM 2020		20	26	20
TA 2015	20	20	27	15
TA 2116	25	21	29	16
TA 2120	31.5	21	29	20
TA 2210	15	22	29	10
TA 2215	21.5	22	29	15
TA 2420	31	24	31	20
TLA 2530		25	32	30
TA 2510	19.1	25	33	10
TA 2515	28.5	25	33	15
TA 2616	30.5	26	34	16
TA 2620	38	26	34	20
TLA 2820		28	35	20
TA 2820	45	28	37	20
TA 2830	67.5	28	37	30
TA 2920	47	29	38	20
TA 2930	70	29	38	30
TLA 3012	23.5	30	37	12
TA 3013	36.5	30	40	13
TA 3015	42	30	40	15
TLA 3026	49	30	37	26
TLA 303730		30	37	30
TLA 3038		30	37	38
TLAM 303746		30	37	46
TLA 303815		30	38	15
TLA 303816		30	38	16
TLA 3030		30	40	30
TA 3220	57.5	32	42	30
TA 3230	86	32	42	30
TLA 3516		35	42	16
TLA 3520		35	42	20
TLA 354320		35	43	20
TA 3512	38.5	35	45	12
TA 3515	48	35	45	15
TA 3520	62.5	35	45	20
TA 3530		35	45	30
TA 3720	64.5	37	47	20
TA 3730	101	37	47	30
TA 3815	51	38	48	15
TA 3820	65.5	38	48	20
TA 3825	82.5	38	48	25
TLA 4012		40	47	12
TLA 4016		40	47	16
TA 4015	54	40	50	15
TA 4020	69.5	40	50	20
TA 4520	77	45	55	20
TA 4525	102	45	55	25
TA 4530	122	45	55	30
TLA 5020	69	50	58	20
TLA 5025	86	50	58	25
TA 5012	62.5	50	62	12
TA 5015	78	50	62	15
TA 5020	107	50	62	20
TA 5025	134	50	62	25
TAW 5045	230	50	62	45
TA 5520	116	55	67	20
TA 5525	145	55	67	25
TA 5530	175	55	67	30
TAW 5550	280	55	67	50
TA 6025	158	60	72	25
TA 6030	191	60	72	30
TA 6040	250	60	72	40
TA 6212	78	62	74	12
TA 6525	169	65	77	25
TA 6530	205	65	77	30
TA 7025	181	70	82	25
TA 7030	220	70	82	30
TA 7040	290	70	82	40

Application

Automotive Industry: Widely used in vehicle transmissions, clutches, and engines. In transmissions, needle roller bearings support synchronizers and gear shafts, handling radial and axial loads for smooth operation and precise shifting. In clutches, they support the clutch shaft, enabling rapid engagement and disengagement.

Industrial Machinery: Essential in gearboxes, motors, pumps, and compressors. In gearboxes, they withstand forces from gear transmission, ensuring proper meshing and efficiency. For motors, they support the shaft, guaranteeing stable, quiet operation.

Aerospace: Critical in aero-engines, landing gears, and avionics. High-precision bearings support turbine and compressor shafts under extreme conditions. In landing gears, they endure massive shock and vibration.

Medical Devices: Applied in CT scanners, surgical robots, and dental equipment. In CT scanners, they enable precise rotation for clear imaging. In surgical robots, they enhance operation accuracy and safety.

Home Appliances: Used in washing machines, air conditioners, and refrigerators. In washing machines, they support motors and drums, ensuring stability. In air conditioners, they boost compressor efficiency and reliability.
