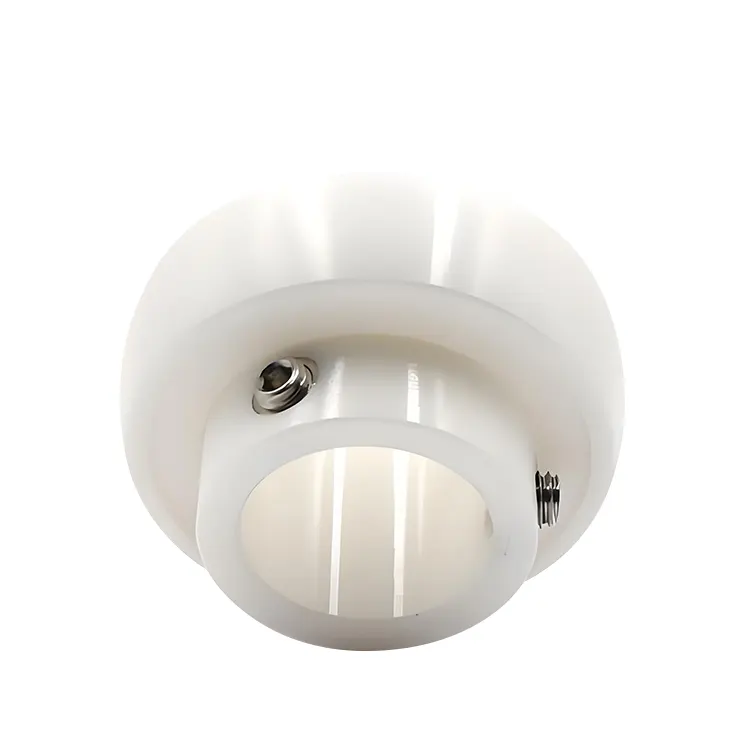

Full Ceramic Insert Ball Bearing

The complete ceramic inset, manufactured by the Komel Company, consists of an inner and outer ring, cover, and cover. The front and rear bodies have their own characteristics. The layer surrounding the outer ring is a sheet, while the top layer is a sheet. Internal cylinders usually have open vents and other openings.

The outer spheroid is connected to the spheroid to perform a self-healing process. The front protective cup makes it easy to attach and remove the tool from the shaft.

Ceramic replacements are made of high-quality ceramic materials such as silicon oxide (Si3N4) and silicon oxide (SiC). These materials have a high tensile strength, making them extremely durable and able to withstand extreme conditions. At the same time, the higher density can reduce the energy consumption by reducing the energy consumption of the core during high-voltage operation.

Ceramic boxes meet the requirements of storage tanks and have the ability to withstand high temperatures and resist corrosion.

These drivers have the ability to work together, respond quickly, and are also anti-violence. Industrial and pharmaceutical products in the new energy industry Food and beverage products.

Parameter (Specification)

Suffixes

Material Suffix

H: It indicates ceramic balls. For example, 6205 - H represents a deep groove ball bearing of model 6205 with ceramic balls as the rolling elements.

T: It may indicate a cage made of ceramic materials. If it is the combined suffix "HT", it means the bearing has both ceramic balls and a ceramic cage.

Tolerance Grade Suffix

P4: It indicates that the bearing's tolerance grade complies with the ISO 4 - level standard. It belongs to a high - precision grade and is usually used in equipment with high - precision requirements, such as the spindles of precision machine tools.

P5: The tolerance grade complies with the ISO 5 - level standard. Its precision is slightly lower than that of P4, and it is also widely used in some industrial equipment with certain precision requirements.

Clearance Suffix

C3: It indicates that the radial clearance of the bearing is larger than the standard clearance. It is suitable for situations where the bearing will generate significant thermal expansion during operation, preventing the bearing from seizing due to thermal expansion.

C4: The clearance is larger than that of C3. It is often used in high - temperature, high - speed, or high - load working conditions.

CM: It represents the clearance for motors, which is a special clearance range suitable for equipment such as motors with high requirements for vibration and noise.

Sealing Suffix

Z: It indicates that the bearing has a dust cover on one side, which can prevent dust and other impurities from entering the bearing.

ZZ: It means that the bearing has dust covers on both sides.

RS: It indicates that the bearing has a contact - type rubber seal on one side. The sealing effect is good, which can prevent lubricating oil leakage and the intrusion of external impurities, but it will increase a certain friction torque.

2RS: It means that the bearing has contact - type rubber seals on both sides.

Application

Industrial Field: In large-scale industrial machinery such as mining machinery, heavy-duty machine tools, and textile machinery, full ceramic insert ball bearings can, by virtue of their self-aligning function and wear-resistant and corrosion-resistant properties, adapt to harsh working environments and the deflection deformation of shafts, ensuring the stable operation of the equipment.

New Energy Field: In wind turbine generator sets, they can be used in the main shaft and gearbox, adapting to the deformation of the shaft under different working conditions of the wind turbine, improving the reliability and service life of the equipment, and reducing the maintenance cost.

Aerospace Field: Their characteristics such as low density, high performance, self-aligning ability, and corrosion resistance meet the stringent requirements of components like aircraft engines and aircraft parts for bearings, ensuring the safe operation of the equipment.

Medical Device Field: In medical devices such as CT scanners and dental surgical equipment, the low friction, high cleanliness, and corrosion resistance of full ceramic insert ball bearings meet the requirements of the equipment for high precision, low noise, and no pollution, ensuring the normal operation of the equipment and the safety of patients.

Food, Beverage and Semiconductor Manufacturing Fields: In the food and beverage processing industry, the non-toxic and harmless properties of ceramic materials can prevent product contamination. In semiconductor manufacturing equipment, their high precision, low pollution, and corrosion resistance can meet the strict requirements of the production process for the equipment.
