Double Direction Thrust Ball Bearing

Komel Bearing Co.,Ltd is a leading Double Direction Thrust Ball Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

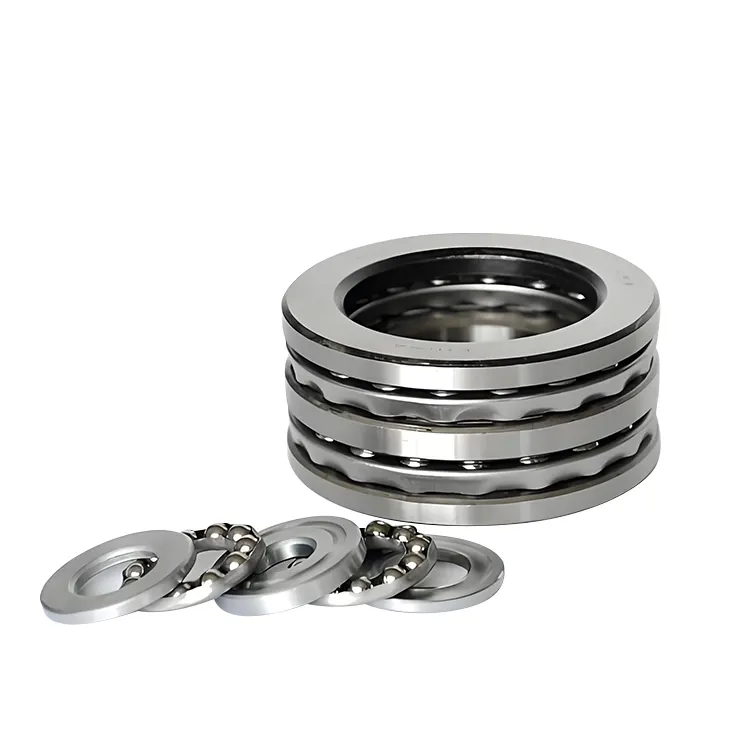

KOMEL bidirectional pressure support bearings consist of two shaft washers, two seat washers, and two sets of ball and frame assemblies. Shaft washers have shafts, house washers have kitchens. Two rows of balls between the two loading threads and the loading. This equipment is used to maintain balance between balls, ensure even ball distribution, and prevent slip and fall.

A Double Direction Thrust Ball Bearing design helps to resist axial forces in either direction. This is achieved by combining two side-by-side tracks back and forth. This method can effectively apply axial loads in different directions simultaneously and can ensure the accuracy of the axial position of the beam.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
52202	10	32	22
52204	15	40	26
52205	20	47	28
52305	20	52	34
52406	20	70	52
52206	25	52	29
52306	25	60	38
52407	25	80	59
52207	30	62	34
52208	30	68	36
52307	30	68	44
52308	30	78	49
52408	30	90	65
52209	35	73	37
52309	35	85	52
52409	35	100	72
52210	40	78	39
52310	40	95	58
52211	45	90	45
52311	45	105	64
52411	45	120	87
52212	50	95	46
52312	50	110	64
52412 M	50	130	93
52213	55	100	47
52214	55	105	47
52313	55	115	65
52314	55	125	72
52414 M	55	150	107
52215	60	110	47
52315	60	135	79
52216	65	115	48
52316	65	140	79
52217	70	125	55
52218	75	135	62
52220	85	150	67
52320	85	170	94
52222	95	160	67
52224	100	170	68
52226	110	190	80
52228	120	200	81
52230 M	130	215	89
52232 M	140	225	90
52234 M	150	240	97
52236 M	150	250	98
54306+U 306	25	60	46
54207+U 207	30	62	42
54208+U 208	30	68	44
54307+U 307	30	68	52
54308+U 308	30	78	59
54209+U 209	35	73	45
54309+U 309	35	65	62
54409+U 409	35	100	86
54310+U 310	40	95	70
54410+U 410	40	110	92
54211+U 211	45	90	55
54312+U 312	50	110	78
54316+U 316	65	140	95
54416 M+U 416	65	170	140
54317+U 317	70	150	105
54420 M+U 420	80	210	176

Suffixes

1.Accuracy Classes

P0: Ordinary tolerance, which is the most commonly used tolerance grade for thrust ball bearings. It is suitable for general industrial application scenarios and is used in most ordinary mechanical equipment to meet basic accuracy requirements.

P6: One level higher than P0, usually used for equipment with certain requirements for rotation accuracy, such as the feed system of machine tools, etc., which can make the operation of the equipment more stable and reduce vibration and noise.

P5: The accuracy is higher than P6, and is often used in high-precision mechanical equipment, such as the spindle of precision machine tools, measuring instruments, etc., which can ensure the high-precision operation of the equipment.

2.Clearance Classes

C1: Indicates that the radial clearance of the bearing is smaller than the ordinary group, which is suitable for occasions with strict requirements on clearance and close fit, such as some high-precision spindle systems.

C2: The clearance is smaller than the ordinary group, but larger than the C1 group, and is used in some application scenarios with certain restrictions on clearance, but not as strict as C1.

C3: The clearance is larger than the ordinary group. It is often used in situations where the bearing will change greatly in size due to the increase in temperature during operation. It can avoid the bearing from getting stuck due to thermal expansion.

3. Cage Materials

M: Indicates that the cage material is brass. Brass cages have good strength and wear resistance and are suitable for working conditions with high speeds and medium loads.

F: Indicates steel solid cages, rolling element guided

TN: Usually indicates nylon cages. Nylon cages are light in weight, good in self-lubrication, and low in noise. They are suitable for high-speed thrust ball bearings.

Application

Machine tool industry: commonly used in the spindle components of machine tools, such as the spindle of a horizontal lathe, which can withstand the axial cutting force from the workpiece, while ensuring the axial positioning accuracy of the spindle and ensuring the processing accuracy.

Metallurgical equipment: In some equipment in the metallurgical industry, such as the crystallizer vibration device of a continuous casting machine, bidirectional thrust ball bearings are used to withstand the axial force of the vibrating components and ensure the stable operation of the equipment.

Reducer: In some reducers, especially in situations where bidirectional axial loads need to be borne, bidirectional thrust ball bearings are used to support the transmission shaft, transmit torque and withstand axial force.

Automobile industry: For example, in the transmission of a car, bidirectional thrust ball bearings can be used to support some gear shafts with large axial forces to ensure the correct meshing and transmission efficiency of the gears.
