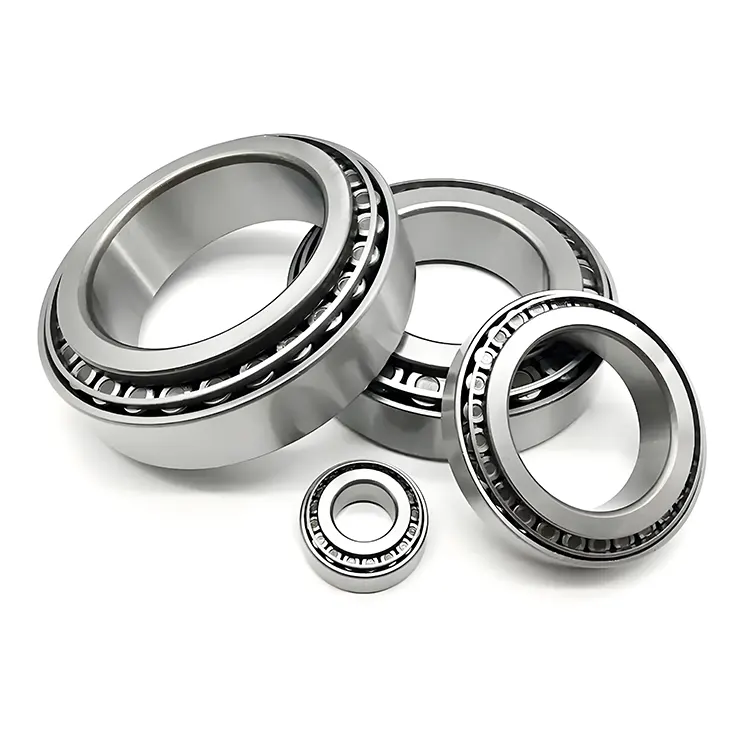

Single Row Taper Roller Bearing

Komel Bearing Co.,Ltd is a leading Single Row Taper Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

Single Row Taper Roller Bearings manufactured by KOMEL consist of an inner ring, a plain bearing and a housing. The road in the house was cleared, and cars drove on the road. The rod is used to define the distance and gap between the wheels, allowing for an even distribution of the inner spool. Typically, metal is used. If the outer diameter of the beam is too large, solid steel columns are used.

A raceway for the outer ring was also installed, in combination with the inner drive ring to provide support for the connected wheels. The outer and inner rings of the ring assembly can be separated, making assembly and disassembly easier.

Our company's high-quality Single Row Taper Roller Bearings are widely used in the automotive industry, machinery manufacturing, mining machinery and wind power generation, among others.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
30202	15	35	11.75
30302	15	42	14.25
30203	17	40	13.25
32203	17	40	17.25
30303	17	47	15.25
32303	17	47	20.25
32004	20	42	15
30204	20	47	15.25
32204	20	47	19.25
30304	20	52	16.25
32304	20	52	19.25
32005	25	47	15
33005	25	47	17
30205	25	52	16.25
32205	25	52	19.25
30305	25	62	18.25
32305	25	62	25.25
32006	30	55	17
33006	30	55	20
30206	30	62	17.25
32206	30	62	21.25
30306	30	72	20.75
32306	30	72	28.75
32907	35	55	14
32007	35	62	18
33007	35	62	21
30207	35	72	18.25
32207	35	72	24.25
33207	35	72	28
30307	35	80	22.75
32307	35	80	32.75
32908	40	62	15
32008	40	68	19
33008	40	68	22
33108	40	75	26
30208	40	80	19.75
32208	40	80	24.75
33208	40	80	32
30308	40	90	25.25
32308	40	90	35.25
32909	45	68	15
32009	45	75	20
33009	45	75	24
33109	45	80	26
30209	45	85	20.75
32209	45	85	24.75
33209	45	85	32
30309	45	100	27.25
32309	45	100	38.25
32910	50	72	15
32010	50	80	20
33010	50	80	24
33110	50	85	26
30210	50	90	21.75
32210	50	90	24.75
30310	50	110	29.25
32310	50	110	42.25
32911	55	80	17
32011	55	90	23
33011	55	90	27
33111	55	95	30
30211	55	100	22.75
32211	55	100	26.75
30311	55	120	31.5
32311	55	120	45.5
32912	60	85	17
32012	60	95	23
33012	60	95	27
33112	60	100	30
30212	60	110	23.75
32212	60	110	29.75
30312	60	130	33.5
32312	60	130	48.5
32913	65	90	17
32013	65	100	23
33013	65	100	27
30213	65	110	34
32213	65	120	24.75
33213	65	120	34.75
30313	65	140	36
32313	65	140	51
32914	70	100	20
32014	70	110	25
33014	70	110	31
33114	70	120	37
30214	70	125	26.25
32214	70	125	33.25
30314	70	150	38
32314	70	150	54
32915	75	105	20
32015	75	115	25
33015	75	115	31
33115	75	125	37
30215	75	130	27.25
32215	75	130	33.25
30315	75	160	40
32315	75	160	58
32916	80	110	20
32016	80	125	29
33016	80	125	36
33116	80	130	37
30216	80	140	28.25
32216	80	140	35.25
30316	80	170	42.5
32316	80	170	61.5
32917	85	120	23
32017	85	130	29
33017	85	130	36
33117	85	140	41
30217	85	150	30.5
32217	85	150	38.5
33217	85	150	49
30317	85	180	44.5
32317	85	180	63.5
32918	90	125	23
32018	90	140	32
33018	90	140	39
33118	90	150	45
30218	90	160	32.5
32218	90	160	45.5
30318	90	190	46.5
32318	90	190	67.5
32919	95	130	23
32019	95	145	32
33019	95	145	39
33119	95	160	49
30219	95	170	34.5
32219	95	170	45.5
30319	95	200	49.5
32319	95	200	71.5
32920	100	140	25
32020	100	150	32
33020	100	150	39
33120	100	165	52
30220	100	180	37
32220	100	180	49
30320	100	215	51.5
32320	100	215	77.5
32921	105	145	25
32021	105	160	35
33021	105	160	43
33121	105	175	56
30221	105	190	35
32221	105	190	53
30321	105	225	53.5
32321	105	225	81.5
32922	110	150	25
32022	110	170	38
33022	110	170	47
33122	110	180	56
30222	110	200	41
32222	110	200	56
30322	110	240	54.5
32322	110	240	84.5
32924	120	165	29
32024	120	180	38
33024	120	180	48
33124	120	200	62
30224	120	215	43.5
32224	120	215	61.5
30324	120	260	59.5
32324	120	260	90.5
32926	130	180	32
32026	130	200	45
33026	130	200	55
30226	130	230	43.75
32226	130	230	67.75
30326	130	280	63.75
32326	130	280	98.75
32928	140	190	32
32028	140	210	45
33028	140	210	56
30228	140	250	45.75
32228	140	250	71.75
30328	140	300	67.75
32328	140	300	107.75
32930	150	210	38
32030	150	225	48
33030	150	225	59
30230	150	270	49
32230	150	270	77
30330	150	320	72
32330	150	320	114
32032	160	240	51
30232	160	290	52
32232	160	290	84
30332	160	340	75
32332	160	340	121
32034	170	260	57
30234	170	310	57
32234	170	310	91
30334	170	360	80
32334	170	360	127
32036	180	280	64
30236	180	320	57
32236	180	320	91
30336	180	380	83
32336	180	380	134
32038	190	290	64
30238	190	340	60
32238	190	340	97
30338	190	400	86
32338	190	400	140
32040	200	310	70
30240	200	360	64
32240	200	360	104
30340	200	420	89
32340	200	420	146
32044	220	340	76
30244	220	400	72
32244	220	400	114
30344	220	460	97
32344	220	460	154
32048	240	360	76
30248	240	440	79
32248	240	440	127
30348	240	480	89
32348	240	480	137
32052	260	400	87
30252	260	480	89
32252	260	480	137
30352	260	540	113
32352	260	540	176
32056	280	420	87
30256	280	500	89
32256	280	500	137
30356	280	580	119
32356	280	580	187
30260	300	540	96
32260	300	540	149
32064	320	580	104
32264	320	580	159

Suffixes

Related to Dimensions and Structures

· E: Reinforced design, which generally means that the dimensions of the bearing's rollers and raceways are increased to improve the bearing's load - carrying capacity. For example, in some heavy - load application scenarios, using reinforced tapered roller bearings can better withstand large radial and axial loads.

· J: The inner ring is equipped with oil holes and oil grooves for lubrication. This design facilitates the injection of lubricating oil into the bearing, ensuring good lubrication during high - speed or heavy - load operation and reducing wear and heat generation.

· JR: The outer ring is equipped with oil holes and oil grooves, also aiming to improve the bearing's lubrication conditions.

· N: The outer ring has a snap - groove for installing a snap - ring, which can achieve axial positioning of the bearing and prevent the bearing from moving axially on the shaft.

· NR: The outer ring has a snap - groove and comes with a snap - ring. Compared with bearings with only a snap - groove, this configuration is more user - friendly. The axial positioning can be completed directly after installing the snap - ring.

Related to Tolerance Classes

· P2: The highest level of dimensional accuracy and rotational accuracy, suitable for application scenarios with extremely high precision requirements, such as the spindles of precision machine tools.

· P4: A high - precision class, with accuracy second only to the P2 class. It is commonly used in some high - speed and high - precision mechanical equipment, such as aero - engines and high - speed grinding machines.

· P5: A common high - precision class, which can meet the requirements of most industrial equipment with certain precision requirements, such as CNC machine tools and textile machinery.

· P6: The accuracy is lower than the P5 class but higher than the normal class (the normal class is indicated without a suffix). It can be used in machinery with general precision requirements, such as agricultural machinery and general machine tools.

Related to Internal Clearance

· C1: The clearance is smaller than the normal clearance, suitable for occasions requiring high precision and low vibration, such as precision instruments and optical equipment.

· C2: The clearance is smaller than the normal clearance but larger than that of the C1 class. It is commonly used in some precision machinery with certain requirements for clearance.

· C0: Normal clearance, which is the most commonly used clearance class and is suitable for most mechanical equipment under general working conditions.

· C3: The clearance is larger than the normal clearance, commonly used in working conditions such as high temperature, high speed, and heavy load. In these cases, the bearing's clearance will decrease due to factors such as thermal expansion. A larger initial clearance can ensure that the bearing still has a proper clearance during operation.

· C4: The clearance is larger than that of the C3 class, suitable for special working conditions with higher temperature, higher speed, and heavier load.

Related to Cages

· M: Solid copper alloy cage, which has good strength, wear resistance, and lubrication performance. It is suitable for high - speed, heavy - load, and high - temperature working environments.

· T: Synthetic resin cage, which is lightweight, has low noise, and good self - lubrication performance. It is commonly used in high - speed and low - noise application scenarios, such as power tools and household appliances.

· TN: Glass - fiber - reinforced nylon 66 cage, which has good strength and toughness and also has certain self - lubrication performance. It is widely used in many common industrial applications.

Related to Materials and Heat Treatment

· W: Special materials, usually indicating that the bearing is made of special steel or other materials to meet specific working conditions, such as corrosion resistance and high - temperature resistance.

· G: Subjected to special heat treatment, which improves the bearing's hardness, wear resistance, and anti - fatigue performance. It is suitable for applications under harsh working conditions and heavy loads.

Application

Automotive Industry

Single-row tapered roller bearings are commonly used in the front and rear wheel hubs, differentials, transmissions and other parts of automobiles. In these applications, they can withstand the radial and axial loads generated during vehicle operation, ensuring the stable rotation of the wheels and the normal operation of the transmission system.

Machinery Manufacturing

They are widely used in the spindles, feed shafts and other parts of various machine tools. They can bear loads such as cutting forces, guaranteeing the machining accuracy and stability of the machine tools. In addition, in other machinery manufacturing fields such as textile machinery, printing machinery and packaging machinery, they are also commonly used to support rotating components, transmit power and bear loads.

Mining Machinery

In equipment such as crushers, ball mills and conveyors, single-row tapered roller bearings can withstand huge impact loads and vibrations, ensuring the reliable operation of the equipment in harsh working environments.

Wind Power Generation

Single-row tapered roller bearings are used in the main shafts, yaw systems and pitch systems of wind turbines. They can bear loads such as the gravity, axial forces and torques of the wind wheels, meeting the requirements for high reliability and long service life of wind power equipment.
