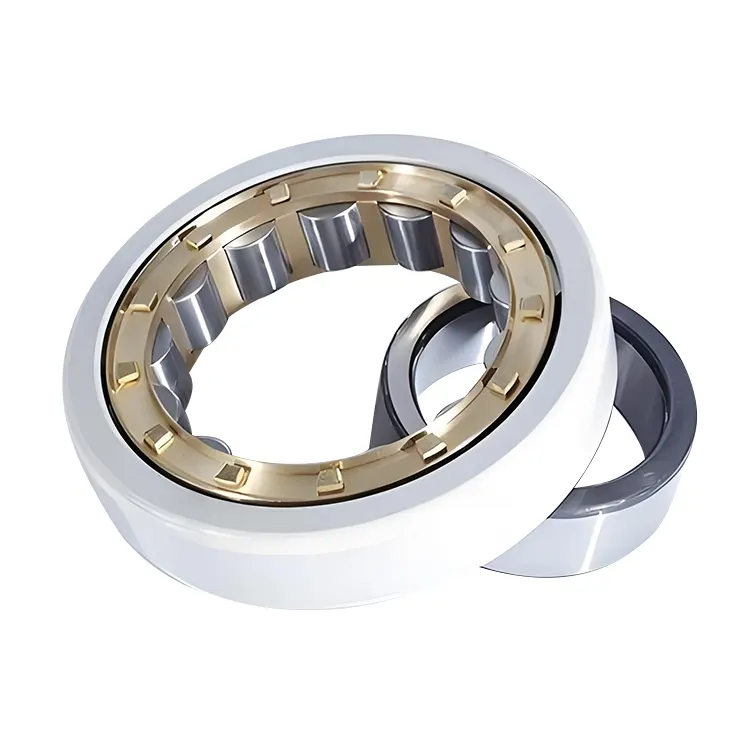

Electrical Insulated Cylindrical Roller Bearing

Komel Bearing Co.,Ltd is a leading Electrical Insulated Cylindrical Roller Bearing manufacturer and supplier in China. We have been specialized in bearing filed for many years. Our products have a good price advantage and we have exported our bearings to many markets. We look forward to become your long-term partner in China.

Send Inquiry

Product Description

China KOMEL is used in making Electrical Insulated Cylindrical Roller Bearing for indoor, outdoor, cylindrical roller and other purposes. In this factory, we make bearings for the machine to be used in making special grinding wheels. Jeleka, wear a mask to protect the inside of the room, wear a cotton swab to protect the inside of the room, wear a cotton swab to protect the inside of the room, wear a jelly lock sleeve with an insulator.

Carbon kromium bearing steel, jeleka GCr15, inside the dome and outside ring and roller bearings are used for making beveled roofs, on a dome bearing, insulating material, to purify the bore. Roofing renovating material can be used either as aluminium oxide or ceramic material, on the other hand, as insulating material, plastic material is used in construction, and it is also used for making roofing material. Electric coating plastic jelly polytetrafluoroethylene, on the other hand, as electric coating material and other materials, it is also used for making roofing material.

No bearing is required for the day when the machine is made of wood or stone or any other material which is used for the production of bean is used for mechanical engineering, such as power plant, or pneumatic power plant.

Parameter (Specification)

Model Number	Inner Diameter	Outer Diameter	Width
NU324ECM/C3VL0241	120	260	55
NU224ECM/C3VL0241	120	215	40
NU322ECM/C3VL0241	110	240	50
NU222ECM/C3VL0241	110	200	38
NU1022M/C3VA3091	110	170	28
NU220ECM/C3VL0241	100	180	34
NU319ECM/C3VL0241	95	200	45
NU318ECM/C3VL0241	90	190	43
NU218ECM/C3VL0241	90	160	30
NU1018M/C4VA3091	90	140	24
NU317ECM/C3VL0241	85	180	41
NU217ECM/C3VL0241	85	150	28
NU316ECM/C3VL0241	80	170	39
NU216ECM/C3VL0241	80	140	26
NU315ECP/VL0241	75	160	37
NU314ECM/C3VL0241	70	150	35
NU313ECM/C3VL0241	65	140	33
NU312ECM/C3VL0241	60	130	31
NU212ECM/C3VL0241	60	110	22
NU310ECM/C3VL0241	50	110	27
NU210ECM/C3HVA3091	50	90	20
NU334EM/C3 V3031A	170	360	36
NU334M/C3VL2071	170	360	72
NU334M/C3VL0241	170	360	72
NU232EM/C3/VL0241	160	290	48
NU230EM/C3/VL0241	150	270	45
NU228EM/C3/VL0241	140	250	42
NU228EM/C3/VL0241	140	250	42
NU226EM/C3/VL0241	130	230	40
NU224EM/C3/VL0241	120	215	40
NU222EM/C3/VL0241	110	200	38
NU220EM/C3/VL0241	100	180	34
NU219EM/C3/VL0241	95	170	32
NU218EM/C3/VL0241	90	160	30
NU217EM/C3/VL0241	85	150	28
NU217EM/C3/VL0241	85	150	28
NU216EM/C3/VL0241	80	140	26
NU215EM/C3/VL0241	75	130	25
NU214EM/C3/VL0241	70	125	24
NU213EM/C3/VL0241	65	120	23
NU212EM/C3/VL0241	60	110	22
NU1056EM/C3/VL0241	280	420	65
NU1052EM/C3/VL0241	260	400	65
NU1048EM/C3/VL0241	240	360	56
NU1044EM/C3/VL0241	220	340	56
NU1040EM/C3/VL0241	200	310	51
NU1038EM/C3/VL0241	190	290	46
NU1036EM/C3/VL0241	180	280	46
NU1034EM/C3/VL0241	170	260	42
NU1032EM/C3/VL0241	160	240	38
NU1030EM/C3/VL0241	150	225	35
NU1028EM/C3/VL0241	140	210	33
NU1026EM/C3/VL0241	130	200	33
NU1024EM/C3/VL0241	120	180	28
NU1022EM/C3/VL0241	110	170	28
NU1021EM/C3/VL0241	105	160	26
NU1020EM/C3/VL0241	100	150	24
NU1019EM/C3/VL0241	95	145	24
NU1018EM/C3/VL0241	90	140	24
NU417EM/C3VL2071	85	210	52
NU416EM/C3VL2071	80	200	48
NU415EM/C3VL2071	75	190	45
NU413EM/C3VL2071	65	160	37
NU412EM/C3VL2071	60	150	35
NU411EM/C3VL2071	55	140	33
NU328EM/C3VL2071	140	300	62
NU326EM/C3VL2071	130	280	58
NU324EM/C3VL2071	120	260	55
NU236EM/C3VL2071	180	320	52
NU234EM/C3VL2071	170	310	52
NU232EM/C3VL2071	160	290	48
NU217EM/C3VL2071	85	150	28
NU216EM/C3VL2071	80	140	26
NU1048EM/C3VL2071	240	360	56
NU1044EM/C3VL2071	220	340	56
NU1040EM/C3VL2071	200	310	51
NU1026EM/C3VL2071	130	200	33
NU1024EM/C3VL2071	120	180	28
NU1022EM/C3VL2071	110	170	28
NU416EM/C3VL2071	80	200	48
NU415EM/C3VL2071	75	190	45
NU336EM/C3VL2071	180	380	75
NU334EM/C3VL2071	170	360	72
NU326EM/C3VL2071	130	280	58
NU324EM/C3VL2071	120	260	55
NU322EM/C3VL2071	110	240	50
NU311EM/C3VL2071	55	120	29
NU310EM/C3VL2071	50	110	27
NU222EM/C3VL2071	110	200	38
NU220EM/C3VL2071	100	180	34
NU1044EM/C3VL2071	220	340	56
NU1040EM/C3VL2071	200	310	51
NU1038EM/C3VL2071	190	290	46
NU1019EM/C3VL2071	95	145	24
NU1018EM/C3VL2071	90	140	24
NU419EM/C3VL0241	95	240	55
NU418EM/C3VL0241	90	225	54
NU417EM/C3VL0241	85	210	52

Suffixes

Related to internal design

· The bearing suffix "VL2071" indicates that this bearing is an inner ring insulated bearing. The outer surfaces of both its inner and outer rings are provided with an aluminum oxide insulating coating, which belongs to the standard coating.

· The bearing suffix "VL0241" indicates that this bearing is an outer ring insulated bearing. The outer surface of its outer ring is coated with an aluminum oxide coating, which belongs to the standard coating, and the insulation capacity is as high as 1000V DC

Related to tolerance class

· P0: Normal tolerance class. This is the most common tolerance class, suitable for most general industrial applications.

· P6: A tolerance class stricter than P0. It is applicable to situations where a certain level of rotational accuracy is required, such as the feed axes of machine tools.

· P5: Higher precision than P6. It is commonly used in the main shafts of high - precision machine tools, aerospace equipment, and other fields with extremely high precision requirements.

Related to clearance

· C1: Smaller than the normal clearance. It is suitable for situations where strict control of axial and radial displacements is required, such as the main shafts of precision machine tools.

· C2: The clearance is smaller than the normal clearance but larger than C1. It is used when a certain level of clearance control is needed but not as strict.

· CN: Normal clearance. It is the most commonly used clearance class, suitable for most general industrial applications.

· C3: The clearance is larger than the normal clearance. It is often used in high - temperature environments or when the interference fit between the shaft and the bearing housing is relatively large, to compensate for the decrease in clearance caused by temperature changes or the fit.

· C4: The clearance is larger than C3. It is suitable for higher - temperature environments or larger interference fits.

· C5: The largest clearance. It is generally used in special working conditions with high temperature, high speed, or large interference fits.

Application

· Motor field: In all kinds of motors, especially large - scale high - voltage motors, shaft current may be generated during motor operation. Electrically insulated cylindrical roller bearings can effectively protect the bearings from electrical corrosion damage, improving the reliability and service life of the motors.

· Variable - frequency drive equipment: With the wide application of variable - frequency technology, high - frequency harmonic currents are more likely to occur in motors and equipment driven by variable - frequency drives, exacerbating the shaft current problem. Electrically insulated cylindrical roller bearings are widely used in these devices to ensure their stable operation.

· Wind power generation: In the gearboxes and generators of wind turbines, electrically insulated cylindrical roller bearings can prevent damage to the bearings caused by currents generated due to reasons such as lightning strikes or electrical system imbalances, ensuring the normal operation of wind power generation equipment.
